Right Angle Geared Motors

right angle geared motors640

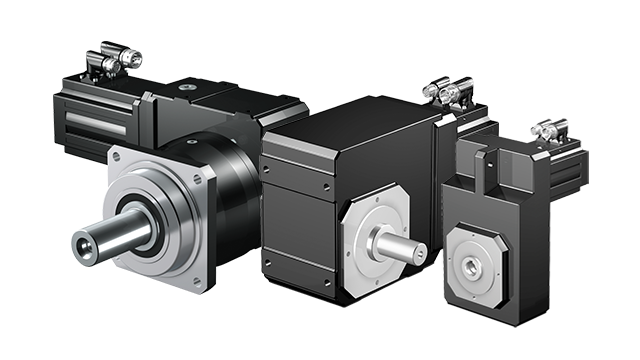

Right Angle Geared Motors

STOBER servo right-angle geared motors are available as planetary right-angle geared motors and helical-bevel geared motors. All drive units are provided with high-quality helical gearing for unrivalled smoothness of running and backlash stability. Backlash down to ≤1.5 arcmin. Super compact synchronous right-angle servo motors are ideal for highly dynamic applications.

Pairing this right-angle servo motor with the EZ motor provides optimal performance and cool running. This is due in large part to its compact design. The rugged construction and precision engineering found in these right-angle motors make them ideal for even the most demanding applications in the most challenging industries. Examples of our right-angle helical-bevel geared motors can be found in operations spanning the automotive, aerospace, robotics, food processing, energy and packaging sectors, among others.

loader-icon
loader-icon

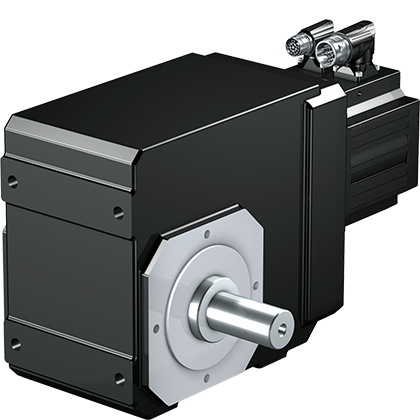

The K/KL series is unparalleled when it comes to right angle options. This servo gear unit’s unique design allows you to use a variety of outputs, including shaft, hollow bore, shrink rings, and bushings.

Housing options include flange, feet, and torque arm.

The K/KL unit features helical bevel gearing, providing smooth motion and optimal efficiency.

When paired with our EZ motor, you benefit from optimal performance, compact design, and cool running.

helical bevel geared motor

K/KL Series: TECHNICAL DATA

Power Density:
Price Range:
$ $ $ $ $
  • Total gear ratio range: 4 – 381
  • Acceleration torque: 22 – 13,200 Nm
  • Nominal torque: 15 – 12,000 Nm
  • Continuous Input Speed: Up to 4,000 RPM
  • Cyclic Input Speed: Up to 7,000 RPM
  • Torsional Stiffness: Up to 725 Nm/arcmin

Find your right fit!

helical bevel geared motor

K/KL Series: FEATURES

  • Outputs:
    • Hollow bore
    • Shaft output (K)
    • Shaft with or without key (KL)
    • Single or double wobble free bushing
  • Housing Styles:
    • Output flange (Round for K, Square for KL)
    • Pitch circle diameter tapped holes
    • Foot mounting
    • Torque arm bracket
  • Package Options: options for different environments. A package includes coating, lubrication, and output material
    • Standard Duty - RAL-9005 black paint, Synthetic Exxon Mobil SHC 629, carbon steel output
    • Corrosion Resistant Duty - 316 stainless steel epoxy paint, Exxon Mobil SHC 630 or 600XP220 Mineral, and stainless steel output
    • Food Duty - 316 stainless steel epoxy food duty paint with anti-microbial clear coat, Exxon Mobil SHC CIBUS 220, and stainless steel output

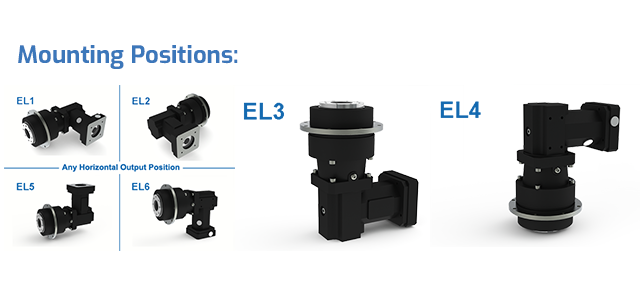

  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • STOBER geared motor are fully supported with the drive manufacturers listed below. They are compatible with EnDat, Hiperface DSL, and Resolver.*
    • Beckhoff
    • Bosch
    • B&R
    • Control Techniques
    • Kollmorgen
    • Rockwell
    • Siemens

    * Note: Not all options are available for every drive.

  • Brakes:
    • Holding brake – ideal for vertical applications or maintaining position
  • IP Ratings:
    • 65 – standard
    • 56
    • 66
  • Encoders:
    • Hiperface DSL (Rockwell)
    • EnDat
      • Single-turn
      • Multi-turn
      • Optical
      • Inductive
      • 2.1
      • 2.2
    • Resolver
  • Fan:
    • Increase torque and cool system without upsizing to larger motor
  • Available as a rack and pinion system

Find your right fit!

K_EZ features

K_EZ Geared Motor by STOBER Drives Click play to begin and ? icon for controls and navigation assistance

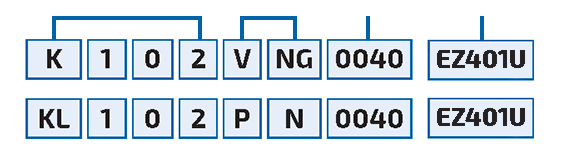

K/KL Geared Motors Series: PART NUMBER EXAMPLE:

k series geared motor

K 1 0 2
V NG
0040
EZ401U
loader-icon

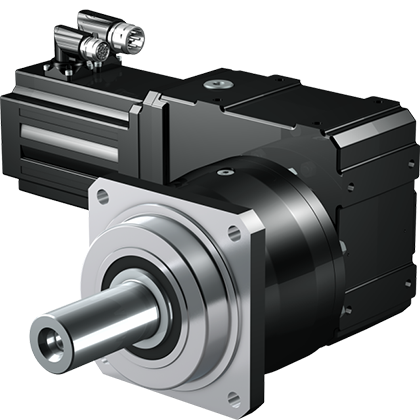

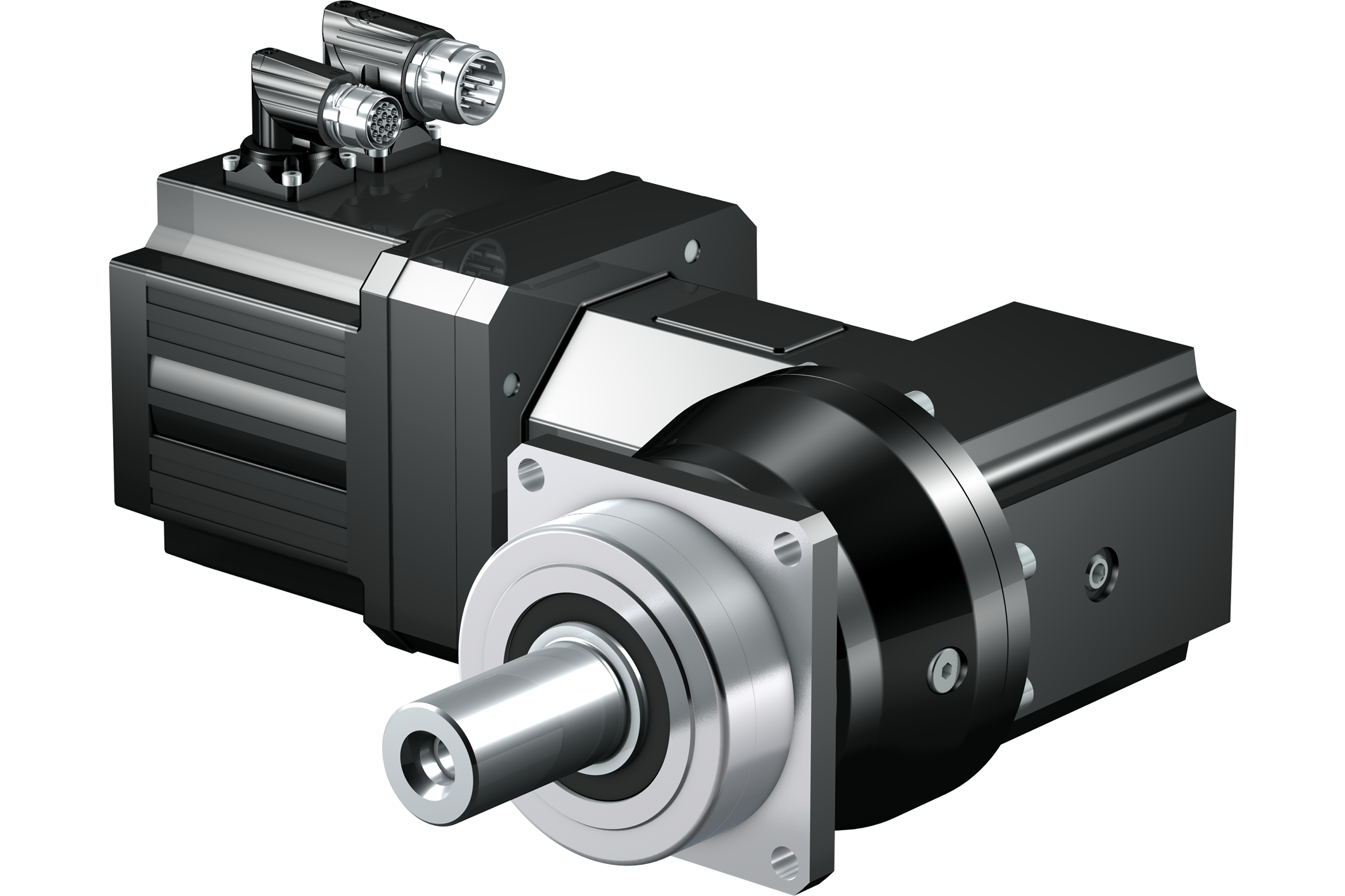

The PKX series combines our planetary P series with a KX series input.

This servo gear unit features a compact design and has superior stiffness and precision compared to a K series unit.

When paired with our EZ motor, you benefit from optimal performance, compact design, and cool running.

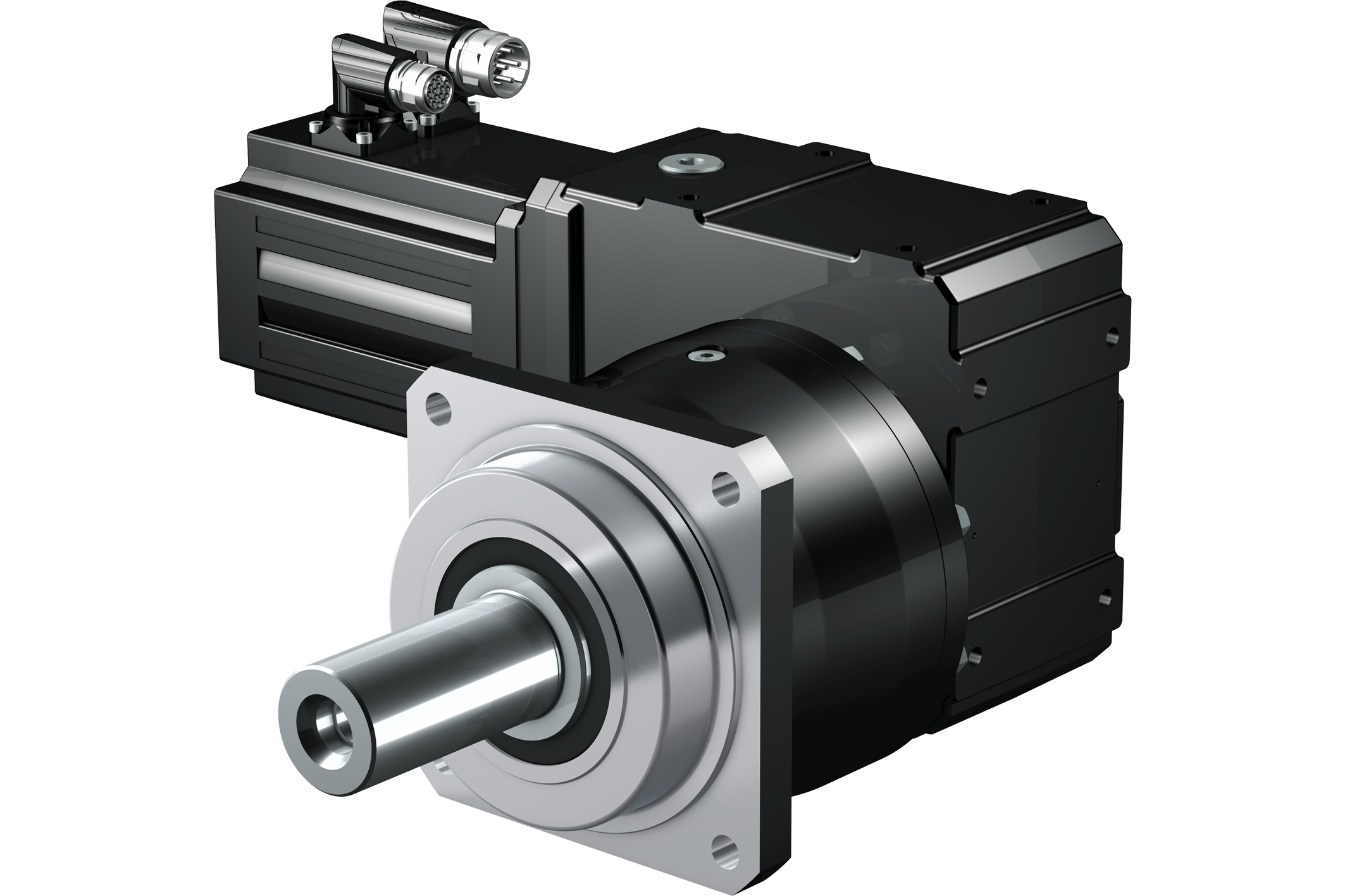

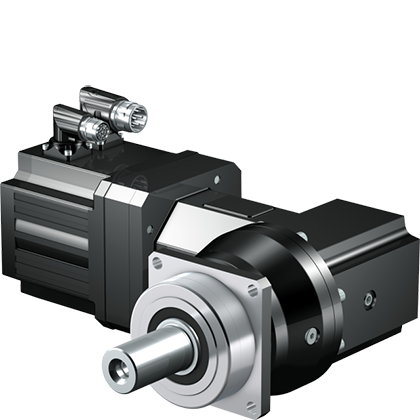

Servo Planetary geared motor

PKX Series: TECHNICAL DATA

Power Density:
Price Range:
$ $ $ $ $
  • Total gear ratio range: 3 – 300
  • Acceleration torque: 21 – 3,300 Nm
  • Nominal torque: 15 – 2,387 Nm
  • Continuous Input Speed: Up to 3,500 RPM
  • Cyclic Input Speed: Up to 6,000 RPM
  • Torsional Stiffness: Up to 393 Nm/arcmin

Find your right fit!

Servo Planetary geared motor

PKX Series: FEATURES

  • Output Shaft:
    • Plain shaft
    • Feather key
  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Double row angular contact bearing – ideal for high axial loads
    • Cylindrical roller bearing – ideal for radial loads
  • Backlash:
    • Standard
    • Reduced - optimized gear hardening ensures smoothness of motion and minimizes velocity ripple
  • Package Options: options for different environments. A package includes coating, lubrication, and output material
    • Standard Duty - RAL-9005 black paint, Synthetic Exxon Mobil SHC 629, carbon steel output
    • Food Duty - 316 stainless steel epoxy paint with anti-microbial clear coat, Exxon Mobil SHC CIBUS 220, and stainless steel output
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • STOBER geared motor are fully supported with the drive manufacturers listed below. They are compatible with EnDat, Hiperface DSL, and Resolver.*
    • Beckhoff
    • Bosch
    • B&R
    • Control Techniques
    • Kollmorgen
    • Rockwell
    • Siemens

    * Note: Not all options are available for every drive.

  • Brakes:
    • Holding brake – ideal for vertical applications or maintaining position
  • IP Ratings:
    • 65 – standard
    • 56
    • 66
  • Encoders:
    • Hiperface DSL (Rockwell)
    • EnDat
      • Single-turn
      • Multi-turn
      • Optical
      • Inductive
      • 2.1
      • 2.2
    • Resolver
  • Fan:
    • Increase torque and cool system without upsizing to larger motor

Find your right fit!

PKX geared motor features

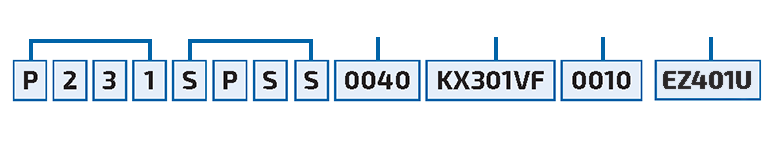

PKX Geared Motors Series: PART NUMBER EXAMPLE:

pkx series geared motor

P 2 3 1
S P S S
0040
EZ401U
KX301VF
0010
loader-icon

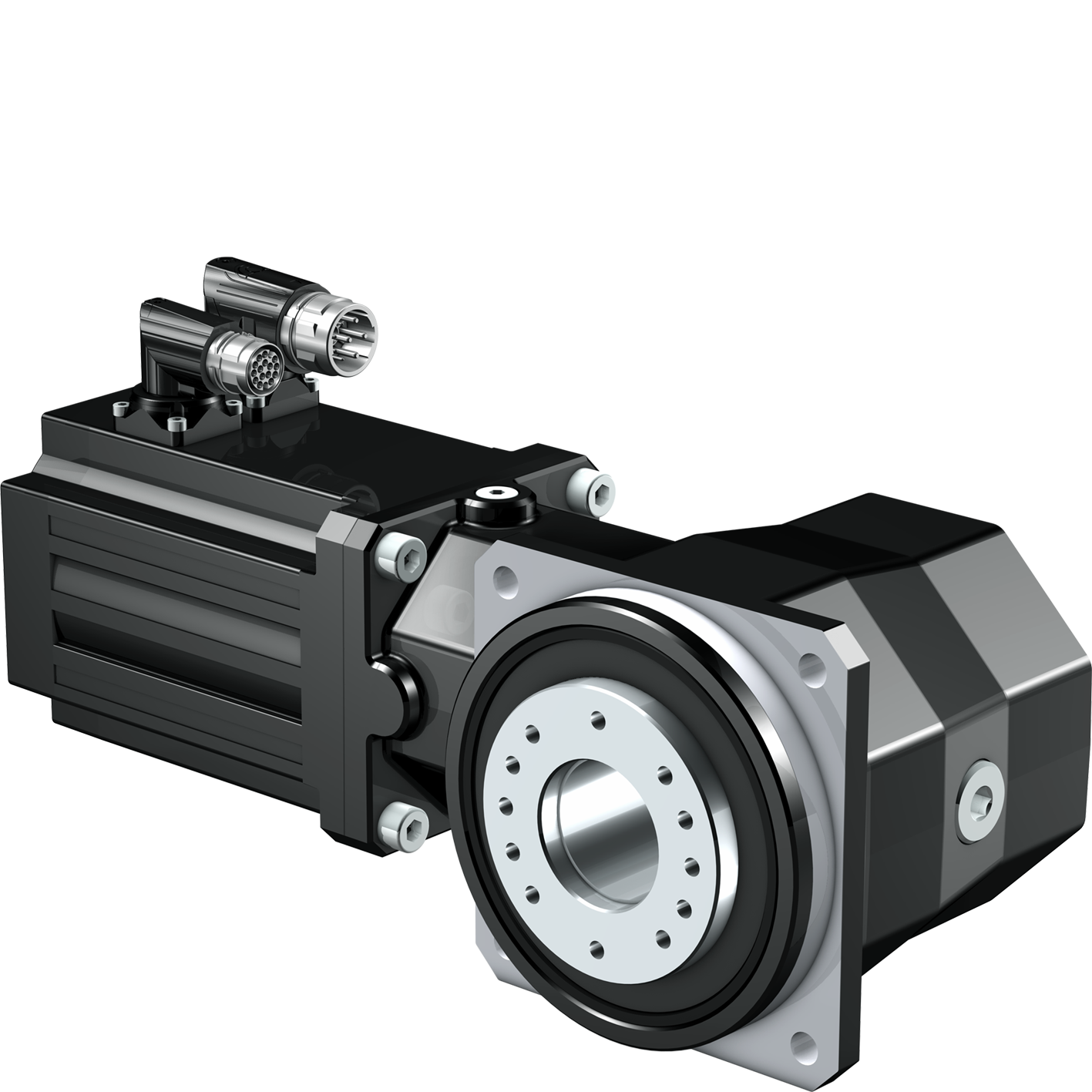

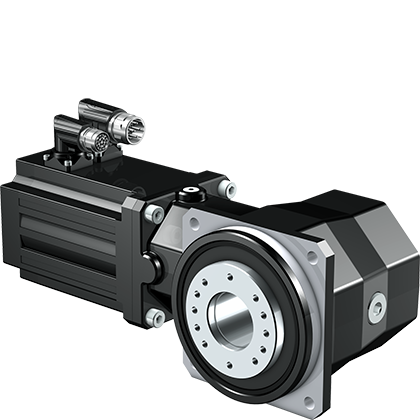

The KS series gives the benefits of helical bevel gearing while still having low backlash.

You can choose from three different output options, including shaft, flange, and hollow bore.

When paired with our EZ motor, you benefit from optimal performance, compact design, and cool running.

helical bevel geared motor

KS Series: TECHNICAL DATA

Power Density:
Price Range:
$ $ $ $ $
  • Total gear ratio range: 6 – 200
  • Acceleration torque: 90 – 400 Nm
  • Nominal torque: 60 – 250 Nm
  • Continuous Input Speed: Up to 4,500 RPM
  • Cyclic Input Speed: Up to 6,000 RPM
  • Torsional Stiffness: Up to 42 Nm/arcmin

Find your right fit!

helical bevel geared motor

KS Series: FEATURES

  • Outputs:
    • Plain shaft
    • Shaft with feather key
    • Flanged hollow bore
    • Shrink ring
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • STOBER geared motor are fully supported with the drive manufacturers listed below. They are compatible with EnDat, Hiperface DSL, and Resolver.*
    • Beckhoff
    • Bosch
    • B&R
    • Control Techniques
    • Kollmorgen
    • Rockwell
    • Siemens

    * Note: Not all options are available for every drive.

  • Brakes:
    • Holding brake – ideal for vertical applications or maintaining position
  • IP Ratings:
    • 65 – standard
    • 56
    • 66
  • Encoders:
    • Hiperface DSL (Rockwell)
    • EnDat
      • Single-turn
      • Multi-turn
      • Optical
      • Inductive
      • 2.1
      • 2.2
    • Resolver
  • Fan:
    • Increase torque and cool system without upsizing to larger motor
  • Available as a rack and pinion system

Find your right fit!

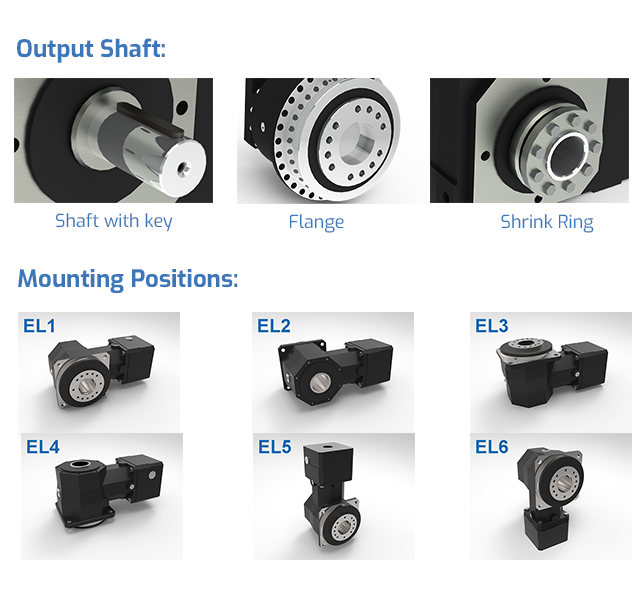

KS_EZ features

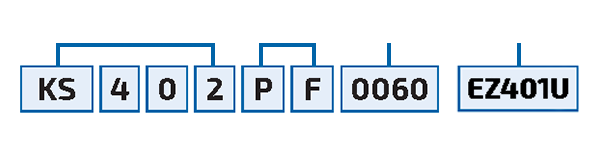

KS Geared Motors Series: PART NUMBER EXAMPLE:

ks series geared motor

KS 4 0 2
P F
0060
EZ401U
loader-icon

The F series offers compact size and flexibility.

This servo gear unit uses helical bevel gearing for optimal efficiency.

Choose from a variety of housing styles and output options.

When paired with our EZ motor, you benefit from optimal performance, compact design, and cool running.

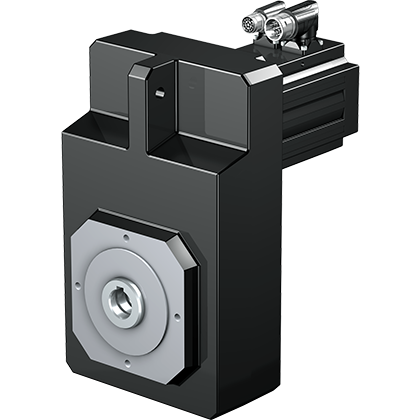

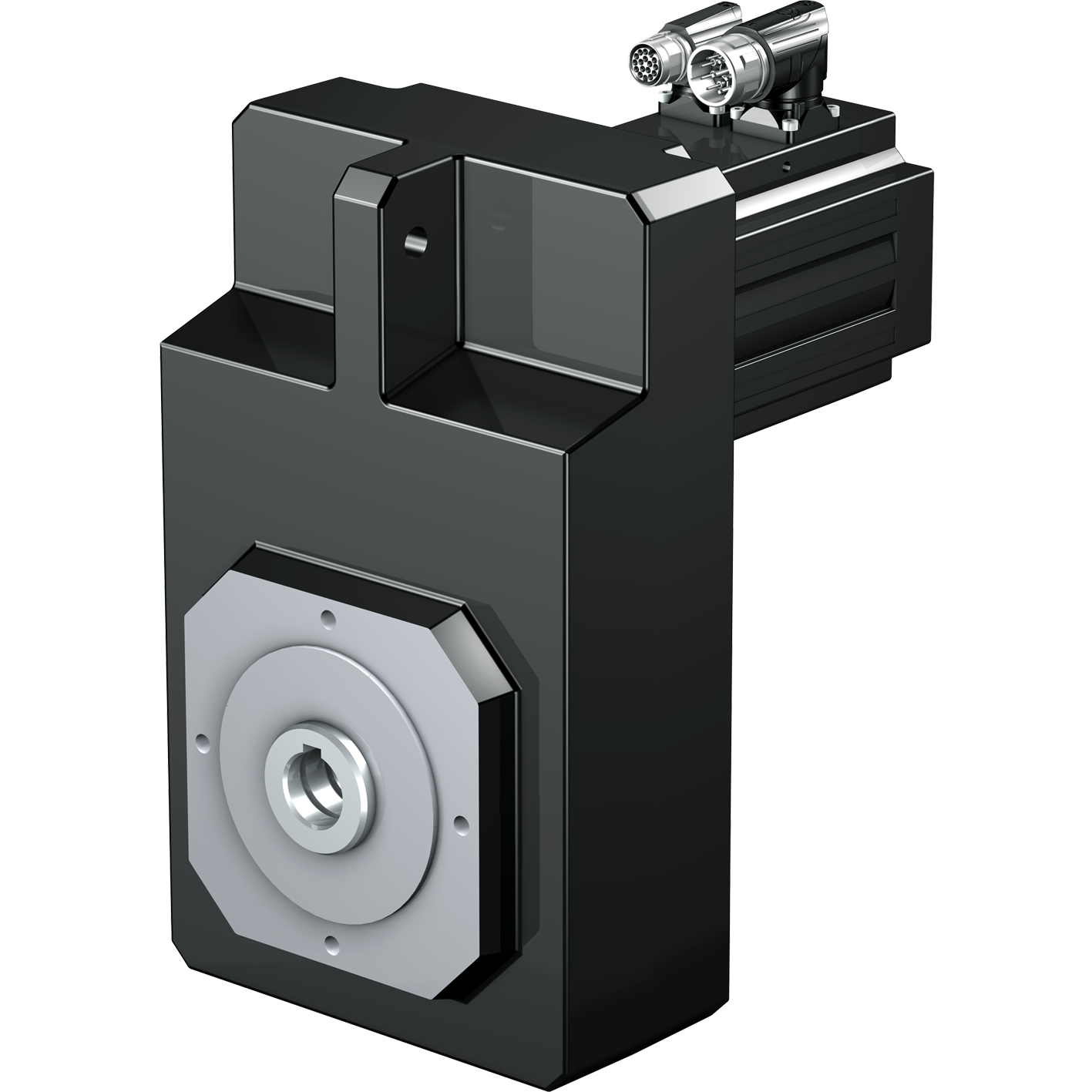

offset geared motor

F Series: TECHNICAL DATA

Power Density:
Price Range:
$ $ $ $ $
  • Total gear ratio range: 4.3 – 552
  • Acceleration torque: 78 – 1,100 Nm
  • Nominal torque: 69 – 1,100 Nm
  • Continuous Input Speed: Up to 4,000 RPM
  • Cyclic Input Speed: Up to 7,000 RPM
  • Torsional Stiffness: Up to 77.4 Nm/arcmin

Find your right fit!

offset geared motor

F Series: FEATURES

  • Outputs:
    • Hollow bore
    • Shaft
    • Shrink ring
    • Single or double wobble free bushing
  • Housing Styles:
    • Output flange
    • Pitch circle diameter tapped holes
    • Foot mounting
  • Package Options: options for different environments. A package includes coating, lubrication, and output material
    • Standard Duty - RAL-9005 black paint, Synthetic Exxon Mobil SHC 629, carbon steel output
    • Corrosion Resistant Duty - 316 stainless steel epoxy paint, Exxon Mobil SHC 630 or 600XP220 Mineral, and stainless steel output
    • Food Duty - 316 stainless steel epoxy food duty paint with anti-microbial clear coat, Exxon Mobil SHC CIBUS 220, and stainless steel output
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • STOBER geared motor are fully supported with the drive manufacturers listed below. They are compatible with EnDat, Hiperface DSL, and Resolver.*
    • Beckhoff
    • Bosch
    • B&R
    • Control Techniques
    • Kollmorgen
    • Rockwell
    • Siemens

    * Note: Not all options are available for every drive.

  • Brakes:
    • Holding brake – ideal for vertical applications or maintaining position
  • IP Ratings:
    • 65 – standard
    • 56
    • 66
  • Encoders:
    • Hiperface DSL (Rockwell)
    • EnDat
      • Single-turn
      • Multi-turn
      • Optical
      • Inductive
      • 2.1
      • 2.2
    • Resolver
  • Fan:
    • Increase torque and cool system without upsizing to larger motor

Find your right fit!

F geared motor features

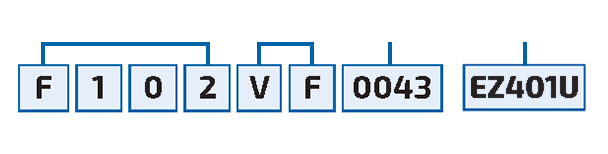

F Geared Motors Series: PART NUMBER EXAMPLE:

f series geared motor

F 1 0 2
V F
0043
EZ401U
loader-icon

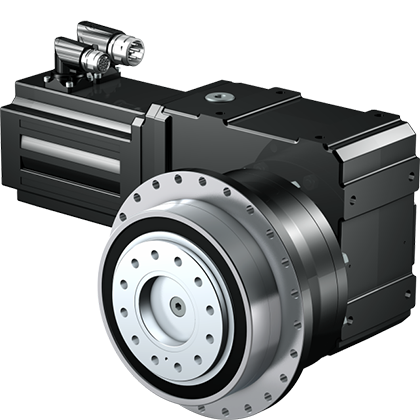

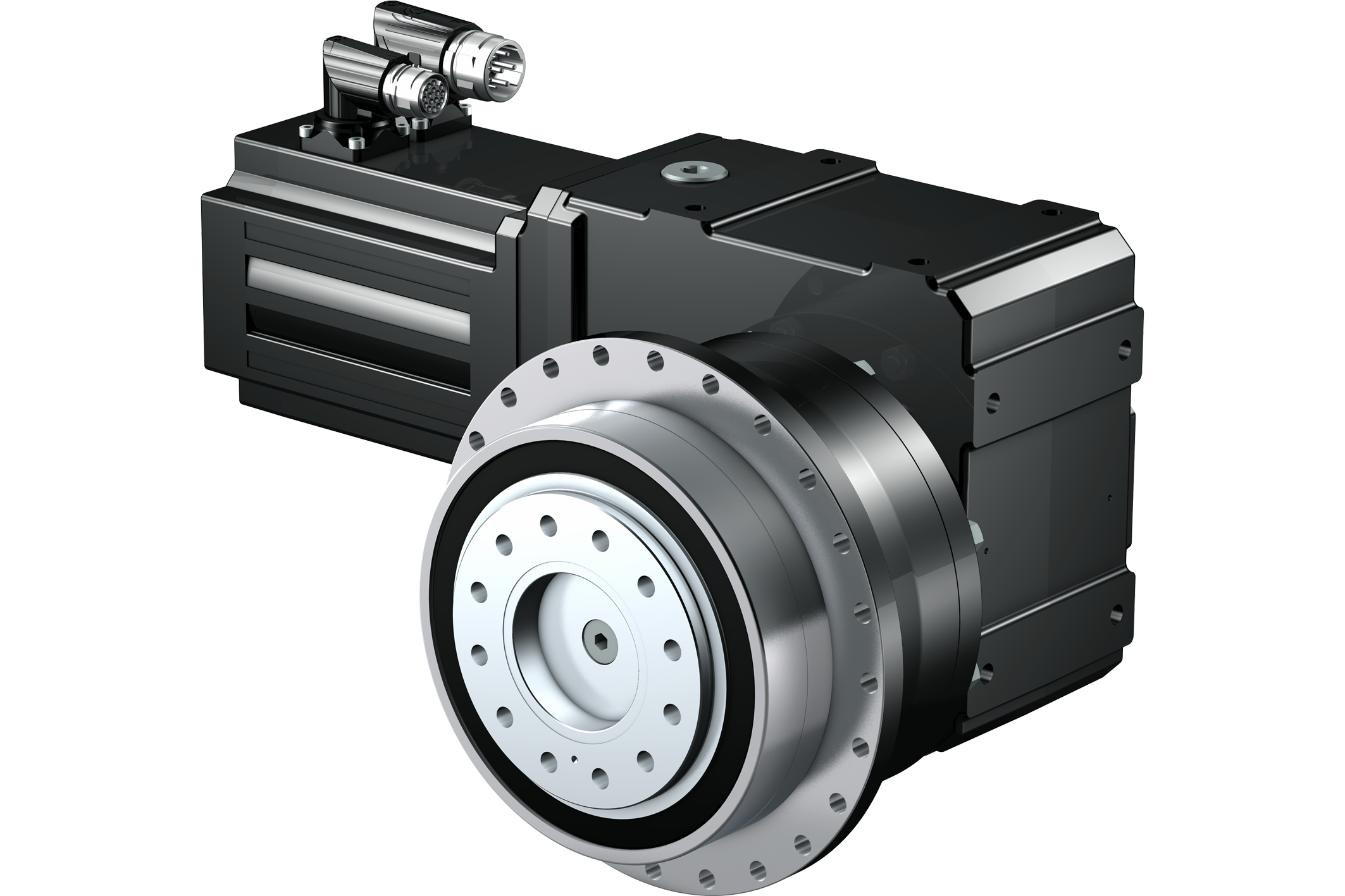

The PHK series combines our planetary PH series with a K series input.

This servo gear unit features quiet operation, higher ratios, and higher input speeds compared to a KX series unit.

When paired with our EZ motor, you benefit from optimal performance, compact design, and cool running.

servo geared motor

PHK Series: TECHNICAL DATA

Power Density:
Price Range:
$ $ $ $ $
  • Total gear ratio range: 16 – 561
  • Acceleration torque: 277 – 7,207 Nm
  • Nominal torque: 210 – 5,000 Nm
  • Continuous Input Speed: Up to 4,000 RPM
  • Cyclic Input Speed: Up to 7,000 RPM
  • Torsional Stiffness: Up to 1,210 Nm/arcmin

Find your right fit!

servo geared motor

PHK Series: FEATURES

  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Reinforced bearing – ideal for high axial loads
  • Coating Options: options for different environments.
    • Standard - RAL-9005 black paint
    • Washdown - 316 stainless steel epoxy paint

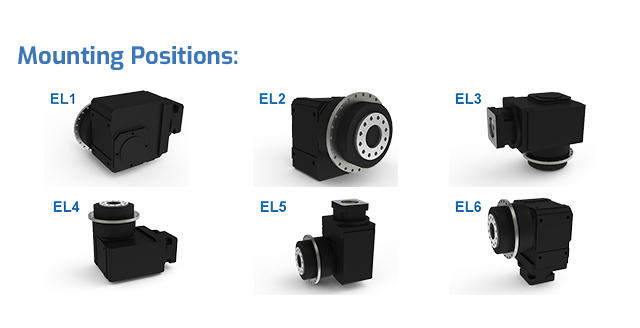

  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • STOBER geared motor are fully supported with the drive manufacturers listed below. They are compatible with EnDat, Hiperface DSL, and Resolver.*
    • Beckhoff
    • Bosch
    • B&R
    • Control Techniques
    • Kollmorgen
    • Rockwell
    • Siemens

    * Note: Not all options are available for every drive.

  • Brakes:
    • Holding brake – ideal for vertical applications or maintaining position
  • IP Ratings:
    • 65 – standard
    • 56
    • 66
  • Encoders:
    • Hiperface DSL (Rockwell)
    • EnDat
      • Single-turn
      • Multi-turn
      • Optical
      • Inductive
      • 2.1
      • 2.2
    • Resolver
  • Fan:
    • Increase torque and cool system without upsizing to larger motor

Find your right fit!

PHK_EZ features

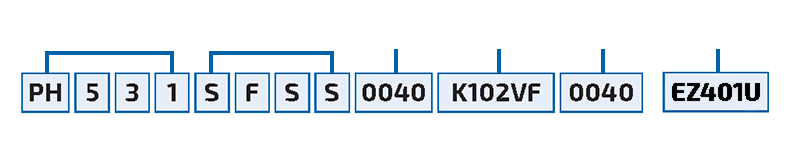

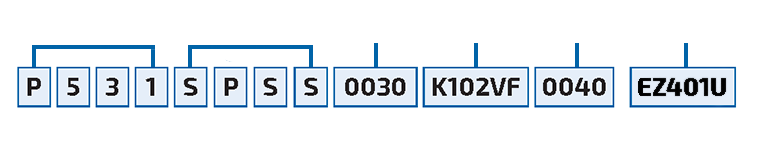

PHK Geared Motors Series: PART NUMBER EXAMPLE:

phk series geared motor

PH 5 3 1
S F S S
0040
K102VF
0040
EZ401U
loader-icon

The PHKX series combines our planetary PH series with a KX series input.

This servo gear unit features a compact design and has superior stiffness and precision compared to a K series unit.

When paired with our EZ motor, you benefit from optimal performance, compact design, and cool running.

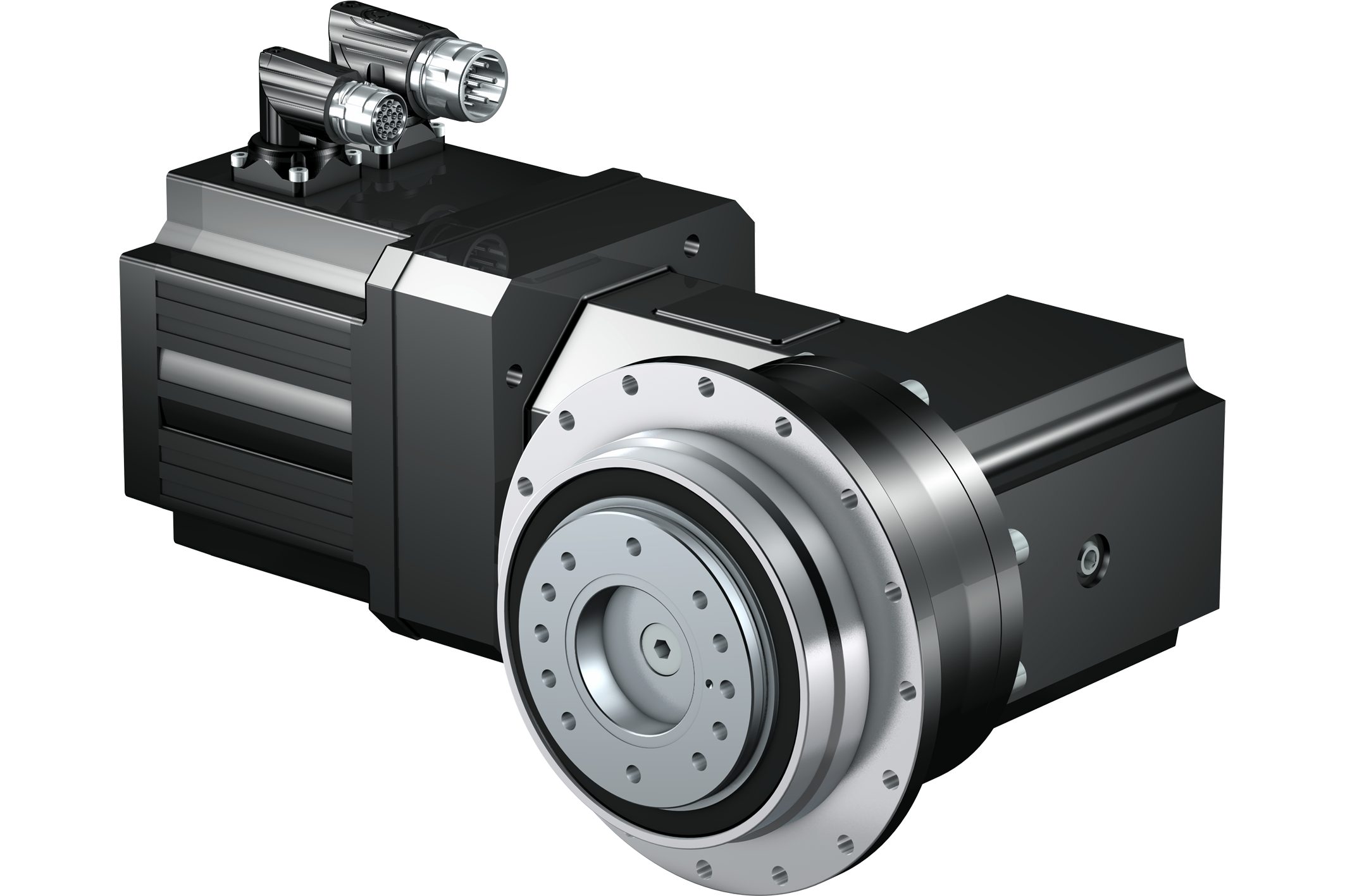

Planetary geared motor

PHKX Series: TECHNICAL DATA

Power Density:
Price Range:
$ $ $ $ $
  • Total gear ratio range: 4 – 300
  • Acceleration torque: 60 – 2,100 Nm
  • Nominal torque: 36 – 1,557 Nm
  • Continuous Input Speed: Up to 3,500 RPM
  • Cyclic Input Speed: Up to 6,000 RPM
  • Torsional Stiffness: Up to 489 Nm/arcmin

Find your right fit!

Planetary geared motor

PHKX Series: FEATURES

  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Reinforced bearing – ideal for high axial loads
  • Backlash:
    • Standard
    • Reduced - optimized gear hardening ensures smoothness of motion and minimizes velocity ripple
  • Coating Options: options for different environments.
    • Standard - RAL-9005 black paint
    • Washdown - 316 stainless steel epoxy paint
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • STOBER geared motor are fully supported with the drive manufacturers listed below. They are compatible with EnDat, Hiperface DSL, and Resolver.*
    • Beckhoff
    • Bosch
    • B&R
    • Control Techniques
    • Kollmorgen
    • Rockwell
    • Siemens

    * Note: Not all options are available for every drive.

  • Brakes:
    • Holding brake – ideal for vertical applications or maintaining position
  • IP Ratings:
    • 65 – standard
    • 56
    • 66
  • Encoders:
    • Hiperface DSL (Rockwell)
    • EnDat
      • Single-turn
      • Multi-turn
      • Optical
      • Inductive
      • 2.1
      • 2.2
    • Resolver
  • Fan:
    • Increase torque and cool system without upsizing to larger motor
  • Available as a rack and pinion system

Find your right fit!

PHKX_EZ features

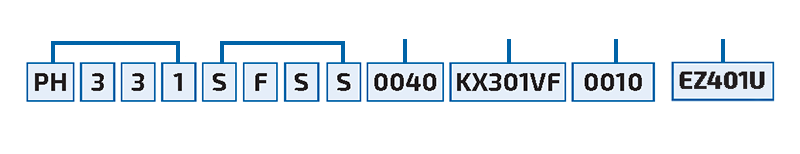

PHKX Geared Motors Series: PART NUMBER EXAMPLE:

phkx series geared motor

PH 3 3 1
S F S S
0040
KX301VF
0010
EZ401U
loader-icon

The PHQK series combines our planetary PHQ series with a K series input.

This servo gear unit features the highest acceleration torque and torque density.

When paired with our EZ motor, you benefit from optimal performance, compact design, and cool running.

 right angle servo geared motor

PHQK Series: TECHNICAL DATA

Power Density:
Price Range:
$ $ $ $ $
  • Total gear ratio range: 22 – 2,242
  • Acceleration torque: 316 – 43,000 Nm
  • Nominal torque: 264 – 21,772 Nm
  • Continuous Input Speed: Up to 4,000 RPM
  • Cyclic Input Speed: Up to 7,000 RPM
  • Torsional Stiffness: Up to 4,664 Nm/arcmin

Find your right fit!

 right angle servo geared motor

PHQK Series: FEATURES

  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Reinforced bearing – ideal for high axial loads
  • Coating Options: options for different environments.
    • Standard - RAL-9005 black paint
    • Washdown - 316 stainless steel epoxy paint
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • STOBER geared motor are fully supported with the drive manufacturers listed below. They are compatible with EnDat, Hiperface DSL, and Resolver.*
    • Beckhoff
    • Bosch
    • B&R
    • Control Techniques
    • Kollmorgen
    • Rockwell
    • Siemens

    * Note: Not all options are available for every drive.

  • Brakes:
    • Holding brake – ideal for vertical applications or maintaining position
  • IP Ratings:
    • 65 – standard
    • 56
    • 66
  • Encoders:
    • Hiperface DSL (Rockwell)
    • EnDat
      • Single-turn
      • Multi-turn
      • Optical
      • Inductive
      • 2.1
      • 2.2
    • Resolver
  • Fan:
    • Increase torque and cool system without upsizing to larger motor

Find your right fit!

PHQK geared motor features

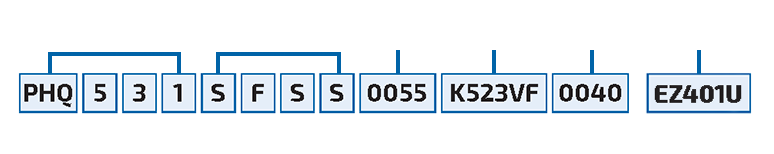

PHQK Geared Motors Series: PART NUMBER EXAMPLE:

phqk series geared motor

PHQ 5 3 1
S F S S
0055
K523VF
0040
EZ401U
loader-icon

The PK series combines our planetary P series with a K series input.

This servo gear unit offers quieter operation, higher input speeds, and higher ratios compared to a KX unit.

When paired with our EZ motor, you benefit from optimal performance, compact design, and cool running.

right angle geared motor

PK Series: TECHNICAL DATA

Power Density:
Price Range:
$ $ $ $ $
  • Total gear ratio range: 12 – 561
  • Acceleration torque: 200 – 3,105 Nm
  • Nominal torque: 120 – 2,100 Nm
  • Continuous Input Speed: Up to 4,000 RPM
  • Cyclic Input Speed: Up to 7,000 RPM
  • Torsional Stiffness: Up to 305 Nm/arcmin

Find your right fit!

right angle geared motor

PK Series: FEATURES

  • Output Shaft:
    • Plain shaft
    • Feather key
  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Double row angular contact bearing – ideal for high axial loads
    • Cylindrical roller bearing – ideal for radial loads
  • Package Options: options for different environments. A package includes coating, lubrication, and output material
    • Standard Duty - RAL-9005 black paint, Synthetic Exxon Mobil SHC 629, carbon steel output
    • Food Duty - 316 stainless steel epoxy paint with anti-microbial clear coat, Exxon Mobil SHC CIBUS 220, and stainless steel output
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • STOBER geared motor are fully supported with the drive manufacturers listed below. They are compatible with EnDat, Hiperface DSL, and Resolver.*
    • Beckhoff
    • Bosch
    • B&R
    • Control Techniques
    • Kollmorgen
    • Rockwell
    • Siemens

    * Note: Not all options are available for every drive.

  • Brakes:
    • Holding brake – ideal for vertical applications or maintaining position
  • IP Ratings:
    • 65 – standard
    • 56
    • 66
  • Encoders:
    • Hiperface DSL (Rockwell)
    • EnDat
      • Single-turn
      • Multi-turn
      • Optical
      • Inductive
      • 2.1
      • 2.2
    • Resolver
  • Fan:
    • Increase torque and cool system without upsizing to larger motor

Find your right fit!

PK_EZ features

PK Geared Motors Series: PART NUMBER EXAMPLE:

pk series geared motor

P 5 3 1
S P S S
0030
K102VF
0040
EZ401U

Featured Videos

sdi downloads
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize
Servo Geared Motors K DimensionsServo Geared Motors K Dimensions 124424372023 09EN2.95 MB
Servo Geared Motors PHKX DimensionsServo Geared Motors PHKX Dimensions 124424372023 09EN758.23 KB
Servo Geared Motors KL RatingsServo Geared Motors KL Ratings 124424372023 09EN242.96 KB
Servo Geared Motors KL DimensionsServo Geared Motors KL Dimensions 124424372023 09EN1.30 MB
Servo Geared Motors PHQK RatingsServo Geared Motors PHQK Ratings 124424372023 09EN850.87 KB
Servo Geared Motors PHQK DimensionsServo Geared Motors PHQK Dimensions 124424372023 09EN945.83 KB
Servo Geared Motors PHK RatingsServo Geared Motors PHK Ratings 124424372023 09EN990.39 KB
Servo Geared Motors PHK DimensionsServo Geared Motors PHK Dimensions 124424372023 09EN781.89 KB
Servo Geared Motors PHKX RatingsServo Geared Motors PHKX Ratings 124424372023 09EN993.96 KB
Servo Geared Motors PK RatingsServo Geared Motors PK Ratings 124424372023 09EN1.00 MB
Servo Geared Motors K RatingsServo Geared Motors K Ratings 124424372023 09EN1.56 MB
Servo Geared Motors PK DimensionsServo Geared Motors PK Dimensions 124424372023 09EN781.12 KB
Servo Geared Motors PKX RatingsServo Geared Motors PKX Ratings 124424372023 09EN1018.05 KB
Servo Geared Motors PKX DimensionsServo Geared Motors PKX Dimensions 124424372023 09EN804.26 KB
Servo Geared Motors KS RatingsServo Geared Motors KS Ratings 124424372023 09EN411.17 KB
Servo Geared Motors KS DimensionsServo Geared Motors KS Dimensions 124424372023 09EN1023.97 KB
Servo Geared Motors F RatingsServo Geared Motors F Ratings 124424372023 09EN802.07 KB
Servo Geared Motors F DimensionsServo Geared Motors F Dimensions 124424372023 09EN1.46 MB
Catalog Synchronous servo geared motors EZCatalog Synchronous servo geared motors EZ 124424372023 03EN25.73 MB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize
Lubricant fill volumeLubricant fill volume 174418712023 10EN2.18 MB
Lubrication Table SLubrication Table S 302021 09EN72.67 KB
Lubrication Table FLubrication Table F 302021 09EN72.63 KB
Lubrication Table CLubrication Table C 302021 09EN77.71 KB
Lubrication Table KLubrication Table K 302021 09EN80.70 KB
Data Sheet EZ401Data Sheet EZ401 14428332021 09EN566.16 KB
Data Sheet EZ703Data Sheet EZ703 14428422021 09EN558.85 KB
Data Sheet EZ301Data Sheet EZ301 14442832021 09EN373.89 KB
Data Sheet EZ302Data Sheet EZ302 14428312021 09EN387.03 KB
Data Sheet EZ805Data Sheet EZ805 14428462021 09EN547.36 KB
Data Sheet EZ803Data Sheet EZ803 14428452021 09EN547.29 KB
Data Sheet EZ802Data Sheet EZ802 14428442021 09EN557.15 KB
Data Sheet EZ705Data Sheet EZ705 14428432021 09EN558.41 KB
Data Sheet EZ702Data Sheet EZ702 14428412021 09EN560.81 KB
Data Sheet EZ402Data Sheet EZ402 14428342021 09EN561.14 KB
Data Sheet EZ701Data Sheet EZ701 14428402021 09EN560.03 KB
Data Sheet EZ303Data Sheet EZ303 14428322021 09EN387.91 KB
Data Sheet EZ503Data Sheet EZ503 14428382021 09EN560.03 KB
Data Sheet EZ502Data Sheet EZ502 14428372021 09EN560.37 KB
Data Sheet EZ501Data Sheet EZ501 14428362021 09EN564.90 KB
Data Sheet EZ404Data Sheet EZ404 14428352021 09EN560.45 KB
Data Sheet EZ505Data Sheet EZ505 14428392021 09EN558.53 KB
Data Sheet Ballscrew MatrixData Sheet Ballscrew Matrix 14424162021 09EN129.92 KB
Manual Gear Units Installation and TroubleshootingManual Gear Units Installation and Troubleshooting 304429002021 09EN16.36 MB
Replacement parts list K2 K3 K4 helical bevel gear unitReplacement parts list K2 K3 K4 helical bevel gear unit 004431312018 10EN1.63 MB
Replacement parts list K5 helical bevel gear unitReplacement parts list K5 helical bevel gear unit 004431282018 10EN1.73 MB
Replacement parts list K1 helical bevel gear unitReplacement parts list K1 helical bevel gear unit 004431322018 09EN1.37 MB
Replacement parts list K9 helical bevel gear unitReplacement parts list K9 helical bevel gear unit 014426862018 03EN1.82 MB
Replacement parts list K6 helical bevel gear unitReplacement parts list K6 helical bevel gear unit 004430732018 03EN1.80 MB
Replacement parts list K7 helical bevel gear unitReplacement parts list K7 helical bevel gear unit 004430642018 03EN1.86 MB
Replacement parts list K8 helical bevel gear unitReplacement parts list K8 helical bevel gear unit 004426922018 03EN1.86 MB
Replacement parts list helical bevel gear units K1004 K1014 AN ANG ANGDReplacement parts list helical bevel gear units K1004 K1014 AN ANG ANGD 044414012010 09EN107.86 KB
Replacement parts list helical bevel gear units K1004 K1014 SN SNG SNGDReplacement parts list helical bevel gear units K1004 K1014 SN SNG SNGD 044414052010 09EN108.28 KB
Replacement parts list helical bevel gear units K1004 K1014 ANFReplacement parts list helical bevel gear units K1004 K1014 ANF 044413992010 09EN101.91 KB
Replacement parts list helical bevel gear units K1004 K1014 VReplacement parts list helical bevel gear units K1004 K1014 V 044413972010 09EN98.02 KB
Replacement parts list helical bevel gear units K1003 K1013 SN SNG SNGDReplacement parts list helical bevel gear units K1003 K1013 SN SNG SNGD 044413932010 09EN100.97 KB
Replacement parts list helical bevel gear units K1003 K1013 SNFReplacement parts list helical bevel gear units K1003 K1013 SNF 044413912010 09EN95.84 KB
Replacement parts list helical bevel gear units K1003 K1013 AN ANG ANGDReplacement parts list helical bevel gear units K1003 K1013 AN ANG ANGD 044413892010 09EN99.85 KB
Replacement parts list helical bevel gear units K1004 K1014 SNFReplacement parts list helical bevel gear units K1004 K1014 SNF 044414032010 09EN103.64 KB
Replacement parts list offset helical gear units F103 F203 F303 F403 F603 VReplacement parts list offset helical gear units F103 F203 F303 F403 F603 V 034408382010 03EN79.66 KB
Replacement parts list offset helical gear units F103 F203 F303 F403 F603 SF SFN SQReplacement parts list offset helical gear units F103 F203 F303 F403 F603 SF SFN SQ 034408422010 03EN87.52 KB
Replacement parts list offset helical gear units F103 F203 F303 F403 F603 SB SG SGNReplacement parts list offset helical gear units F103 F203 F303 F403 F603 SB SG SGN 034408412010 03EN91.57 KB
Replacement parts list offset helical gear units F103 F203 F303 F403 F603 AB AG AGNReplacement parts list offset helical gear units F103 F203 F303 F403 F603 AB AG AGN 034408392010 03EN84.50 KB
Replacement parts list offset helical gear units F102 F202 F302 F402 F602 AB AG AGNReplacement parts list offset helical gear units F102 F202 F302 F402 F602 AB AG AGN 034408342010 03EN78.05 KB
Replacement parts list offset helical gear units F102 F202 F302 F402 F602 SF SFN SQReplacement parts list offset helical gear units F102 F202 F302 F402 F602 SF SFN SQ 034408372010 03EN81.41 KB
Replacement parts list offset helical gear units F102 F202 F302 F402 F602 SB SG SGNReplacement parts list offset helical gear units F102 F202 F302 F402 F602 SB SG SGN 034408362010 03EN85.11 KB
Replacement parts list offset helical gear units F102 F202 F302 F402 F602 AF AFN AQReplacement parts list offset helical gear units F102 F202 F302 F402 F602 AF AFN AQ 034408352010 03EN79.34 KB
Replacement parts list offset helical gear units F102 F202 F302 F402 F602 VReplacement parts list offset helical gear units F102 F202 F302 F402 F602 V 034408332010 03EN72.86 KB
Replacement parts list offset helical gear units F103 F203 F303 F403 F603 AF AFN AQReplacement parts list offset helical gear units F103 F203 F303 F403 F603 AF AFN AQ 034408402010 03EN85.53 KB
Replacement parts list helical gear units C1014 NG NFReplacement parts list helical gear units C1014 NG NF 014415892009 11EN106.69 KB
Replacement parts list helical gear units C1013 NG NFReplacement parts list helical gear units C1013 NG NF 014415882009 11EN97.33 KB
Replacement parts list helical gear units C002 C102 C202 C302 C402 C502 NG NFReplacement parts list helical gear units C002 C102 C202 C302 C402 C502 NG NF 024408162009 11EN73.14 KB
Replacement parts list helical gear units C002 C102 C202 C302 C402 C502 NReplacement parts list helical gear units C002 C102 C202 C302 C402 C502 N 024408132009 11EN69.74 KB
Replacement parts list helical gear units C603 C613 C703 C713 C803 C813 C903 C913 G FReplacement parts list helical gear units C603 C613 C703 C713 C803 C813 C903 C913 G F 024408252009 11EN86.68 KB
Replacement parts list helical gear units C103 C203 C303 C403 C503 G FReplacement parts list helical gear units C103 C203 C303 C403 C503 G F 024408182009 11EN79.63 KB
Replacement parts list helical gear units C103 C203 C303 C403 C503 QReplacement parts list helical gear units C103 C203 C303 C403 C503 Q 024408192009 11EN77.52 KB
Replacement parts list helical gear units C103 C203 C303 C403 C503 NG NFReplacement parts list helical gear units C103 C203 C303 C403 C503 NG NF 024408202009 11EN80.38 KB
Replacement parts list helical gear units C602 C612 C702 C712 C802 C812 C902 C912 NReplacement parts list helical gear units C602 C612 C702 C712 C802 C812 C902 C912 N 024408212009 11EN75.77 KB
Replacement parts list helical gear units C602 C612 C702 C712 C802 C812 C902 C912 G FReplacement parts list helical gear units C602 C612 C702 C712 C802 C812 C902 C912 G F 024408222009 11EN78.12 KB
Replacement parts list helical gear units C602 C612 C702 C712 C802 C812 C902 C912 NG NFReplacement parts list helical gear units C602 C612 C702 C712 C802 C812 C902 C912 NG NF 024408232009 11EN79.16 KB
Replacement parts list helical gear units C603 C613 C703 C713 C803 C813 C903 C913 NReplacement parts list helical gear units C603 C613 C703 C713 C803 C813 C903 C913 N 024408242009 11EN83.03 KB
Replacement parts list helical gear units C603 C613 C703 C713 C803 C813 C903 C913 NG NFReplacement parts list helical gear units C603 C613 C703 C713 C803 C813 C903 C913 NG NF 024408262009 11EN86.95 KB
Replacement parts list helical gear units C002 C102 C202 C302 C402 C502 G FReplacement parts list helical gear units C002 C102 C202 C302 C402 C502 G F 024408142009 11EN72.75 KB
Replacement parts list helical gear units C1002 NReplacement parts list helical gear units C1002 N 014408272009 11EN78.97 KB
Replacement parts list helical gear units C1002 G FReplacement parts list helical gear units C1002 G F 014408282009 11EN83.31 KB
Replacement parts list helical gear units C1003 NReplacement parts list helical gear units C1003 N 014408302009 11EN82.84 KB
Replacement parts list helical gear units C1003 G FReplacement parts list helical gear units C1003 G F 014408312009 11EN86.91 KB
Replacement parts list helical gear units C1003 NG NFReplacement parts list helical gear units C1003 NG NF 014408322009 11EN89.44 KB
Replacement parts list helical gear units C103 C203 C303 C403 C503 NReplacement parts list helical gear units C103 C203 C303 C403 C503 N 024408172009 11EN77.80 KB
Replacement parts list helical gear units C002 C102 C202 C302 C402 C502 QReplacement parts list helical gear units C002 C102 C202 C302 C402 C502 Q 024408152009 11EN69.95 KB
Replacement parts list helical gear units C1002 NG NFReplacement parts list helical gear units C1002 NG NF 014408292009 11EN85.91 KB
Safety instructions for electrical equipmentSafety instructions for electrical equipment 004415982009 05EN93.30 KB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize
Siemens 3rd Party CompatibilitySiemens 3rd Party Compatibility Siemens Additional Hardware2024 01EN171.81 KB
Flyer cLEAN SystemFlyer cLEAN System 012024 01EN1.84 MB
Flyer OEM Renewal ProgramFlyer OEM Renewal Program 012023 11EN3.13 MB
Flyer Hydraulic Motor AdaptersFlyer Hydraulic Motor Adapters 012023 08EN1.89 MB
Brochure We Are STOBERBrochure We Are STOBER 314429352022 11EN7.99 MB
Flyer Environmentally FriendlyFlyer Environmentally Friendly 012022 10EN3.23 MB
Flyer Torque Arm Stabilizer BracketFlyer Torque Arm Stabilizer Bracket 012022 08EN6.72 MB
Flyer Power Transmission OEM BenefitsFlyer Power Transmission OEM Benefits 012022 08EN10.39 MB
Flyer Advantages of STOBER over Motorized PulleyFlyer Advantages of STOBER over Motorized Pulley 012022 08EN1.65 MB
Flyer Benefits of STOBER ProductsFlyer Benefits of STOBER Products 012022 06EN2.56 MB
Flyer Servo Geared Motors AdaptabilityFlyer Servo Geared Motors Adaptability 012022 06EN945.04 KB
Flyer Servo Geared Motors Compact SizeFlyer Servo Geared Motors Compact Size 012022 06EN964.99 KB
Flyer Servo Geared Motors Packaged UnitFlyer Servo Geared Motors Packaged Unit 012022 06EN2.91 MB
Flyer Servo Geared Motors Dynamic SolutionsFlyer Servo Geared Motors Dynamic Solutions 012022 06EN1.26 MB
Flyer Servo Geared Motors BulletinFlyer Servo Geared Motors Bulletin 012022 06EN2.04 MB
Flyer Servo Geared Motors Runs CoolerFlyer Servo Geared Motors Runs Cooler 012022 06EN853.33 KB
Flyer Servo Does Not Have to Mean PlanetaryFlyer Servo Does Not Have to Mean Planetary 012021 19EN6.49 MB
Flyer Hygienic Gearbox DesignFlyer Hygienic Gearbox Design 012021 11EN668.60 KB
Preventitive Maintenance Oil ChangePreventitive Maintenance Oil Change 012021 11EN562.52 KB
KSS Reducer RefurbishmentKSS Reducer Refurbishment 012021 11EN685.79 KB
MR Motor Adapter RefurbishmentMR Motor Adapter Refurbishment 012021 11EN488.65 KB
Aftermarket Service FlyerAftermarket Service Flyer Aftermarket Service Flyer2021 11EN9.50 MB
Brochure Food InsightBrochure Food Insight 012021 10EN1.98 MB
eBook Gearing EfficiencyeBook Gearing Efficiency 012021 10EN1011.84 KB
Brochure Machine Tool InsightBrochure Machine Tool Insight 012021 10EN922.06 KB
Flyer ME Motor Adapter BulletinFlyer ME Motor Adapter Bulletin 012021 10EN5.43 MB
Brochure Entertainment InsightBrochure Entertainment Insight 012021 10EN1.23 MB
Brochure Packaging InsightBrochure Packaging Insight 012021 10EN2.07 MB
Rockwell Totally Stainless Steel Servo SolutionsRockwell Totally Stainless Steel Servo Solutions 012021 10EN6.64 MB
Brochure Semiconductor InsightBrochure Semiconductor Insight 012021 10EN1.68 MB
Flyer Documented Cost SavingsFlyer Documented Cost Savings 012021 10EN766.46 KB
eBook Vibrations In DesignseBook Vibrations In Designs 012021 10EN4.15 MB
Brochure Beverage InsightBrochure Beverage Insight 012021 10EN1.37 MB
Flyer_Packaging InnovationFlyer_Packaging Innovation 012021 10EN657.37 KB
eBook Basics Of Gearbox SelectioneBook Basics Of Gearbox Selection 012021 10EN332.97 KB
Flyer Generation Three Planetary Gear UnitsFlyer Generation Three Planetary Gear Units 012021 06EN4.48 MB
Flyer Dangers of Water IngressFlyer Dangers of Water Ingress 012021 06EN825.35 KB
Flyer Torque Arm MountingFlyer Torque Arm Mounting 012021 06EN1.94 MB
Flyer Rockwell and STOBERFlyer Rockwell and STOBER 012021 06EN678.73 KB
Flyer Prime K Series RatiosFlyer Prime K Series Ratios 012021 06EN700.84 KB
Flyer Eliminate Paint FlakingFlyer Eliminate Paint Flaking 012021 06EN946.87 KB
Flyer Eliminate Shock LoadsFlyer Eliminate Shock Loads 012021 06EN1020.91 KB
Flyer STOBER by the NumbersFlyer STOBER by the Numbers 012020 10EN746.46 KB
Flyer Handling Shaft LoadsFlyer Handling Shaft Loads 012020 10EN1.35 MB
Flyer Avoid Integral Motor DowntimeFlyer Avoid Integral Motor Downtime 012020 09EN816.72 KB
Flyer Storeroom OptimizationFlyer Storeroom Optimization 012020 04EN747.11 KB
Flyer No Oil Changes RequiredFlyer No Oil Changes Required 012020 03EN5.87 MB
Flyer Eliminating Gearing MisalignmentFlyer Eliminating Gearing Misalignment 012020 02EN1.89 MB
Flyer Optimizing Bearings for GearboxesFlyer Optimizing Bearings for Gearboxes 012016 03EN215.71 KB
PowerTipsWhite 1

STOBER’s Power Tips video series shares best practices and helpful answers to frequently asked questions.

top five advantages
global support for your machine
stober application requirements

Aftermarket
Service

Software
Tools

Sales Rep
Network

Emergency
Service

Why Should You Choose STOBER?

We’re known as the world’s toughest gearbox manufacturer, and we’ve never stopped looking for ways to improve our offerings. When you choose to buy a right-angle drive motor from us, you’ll be receiving a component that has been designed and engineered to the highest possible standards of quality. Our right-angle electric motors are built to withstand even the most challenging conditions and still deliver exceptional performance in every aspect.

Working with us also means you’ll experience our unwavering commitment to providing the best customer service in everything we do. We offer competitive pricing, fast delivery for all products and the expertise to help ensure you get the most out of your new motors. We’ve been in business for more than 85 years, meaning you can count on us to be there when you need us. To learn more about these motors, get in touch with us today.

You may also be interested in

right angle servo420
Right Angle Servo Gear Units

Mounting flexibility and a variety of outputs make for the most powerful gearbox on the market. STOBER’s right angle servo gear units give you the ultimate choices.

rackPinion640
Rack & Pinion Drives

With the innovative system concept for rack and pinion drives, STOBER has developed a compact, process-safe easy-to-use system – ideal for automation or robotics.

inline geared motors420
Inline Geared Motors

STOBER’s inline geared motors provide the ultimate stiffness and precision for your application.

ezMotors420
Synchronous Servo Motors

Utilize STOBER’s hollow bore motor for passing media through the center of the motor or try the EZ shaft option.

K series part number
