Rack and Pinion Drives

rack and pinion640

Rack and Pinion Drives

From high speed to high force, flange to shaft, STOBER has the options you need, especially when it comes to rack and pinion drives. Every rack and pinion system uses STOBER’s superior servo gear units and can be made into a system with a motor. These pinions work with a variety of rack options, including helical or straight tooth.

BENEFITS
The World’s Toughest Gearboxes
STOBER’s unique line of rack and pinion systems can handle a variety of machine needs, from high force to high speed.

Improve your machine’s repeatability with high stiffness.

The rack and pinion offerings can be mated to both flange gearboxes as well as shafted inline or right angle options. Selection and calculations are done by STOBER for a completely engineered solution.
KSS: For the toughest environments
The ZR series is ideal for high speed applications. The large helical pinion mates to the rack for high feed rates. It attached to the PH series and works well for bridging larger distances between axes. ZR units are available as compact servo or geared motors, or they can be mounted to any motor with our toleranced motor adapter.
K/KL: For right angle applications
The ZTR series is perfect for applications that require high force but have smaller machine envelopes. It attaches to the PH series and works well for machine tool feed axes. ZTR gear units are available as compact servo or geared motors, or they can be mounted to any motor with our toleranced motor adapter.
KSS: For the toughest environments
The ZTRS series is perfect for applications that require high force. It allows the machine to have optimal performance and stiffness. The bearing cover and felt gear provide additional force. It attached to the PH series and works well for machine tool feed axes. ZTRS gear units are available as compact servo or geared motors, or they can be mounted to any motor with our toleranced motor adapter.
KSS: For the toughest environments
The ZV series can be paired with numerous STOBER gearboxes, giving you the freedom to have an inline or a right angle solution. It is ideal for general automation applications and offers great performance. It attaches to the P, PE, KS, K, and KL series. ZV gear units are available as compact servo or geared motors, or they can be mounted to any motor with our toleranced motor adapter.
TECHNICAL DATA
KSS: For the toughest environments

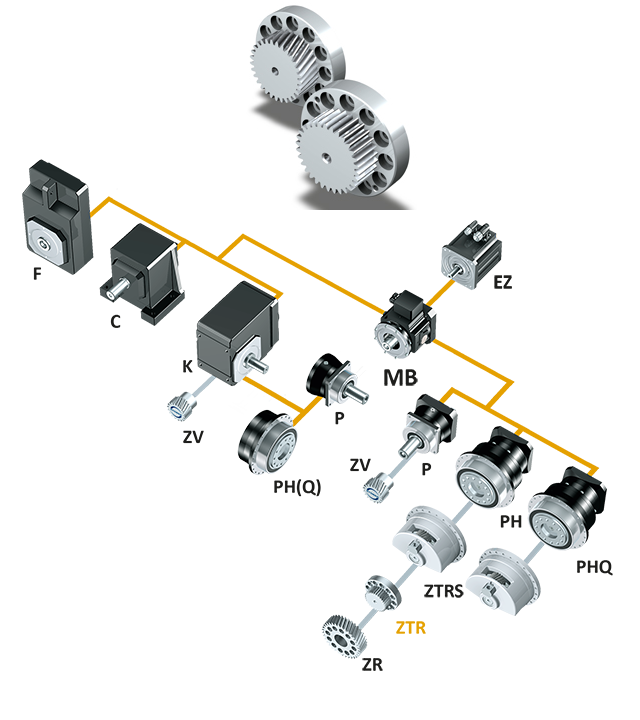

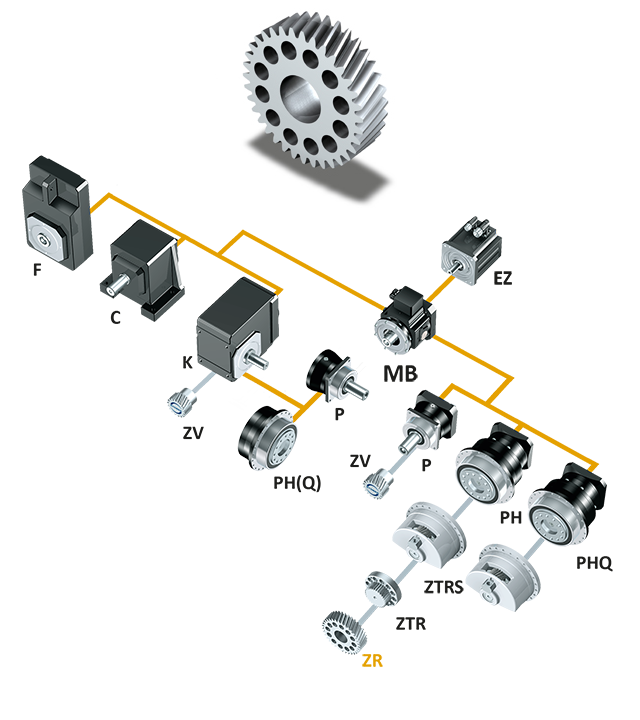

ZR Series: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Feed Force: 2.1- 15 kN
  • Feed Velocity: .23 – 6.7 meters/second
  • Module: 2 – 4 mm
  • Number of teeth: 26 – 45
  • Backlash: 10 – 56 μm


Find your right fit!
K/KL: For right angle applications
ZTR Series: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Feed Force: 5.8 – 67 kN
  • Feed Velocity: .09 – 4.7 meters/second
  • Module: 2 – 8 mm
  • Number of teeth: 12 – 32
  • Backlash: 4 – 44 μm

Find your right fit!
KSS: For the toughest environments

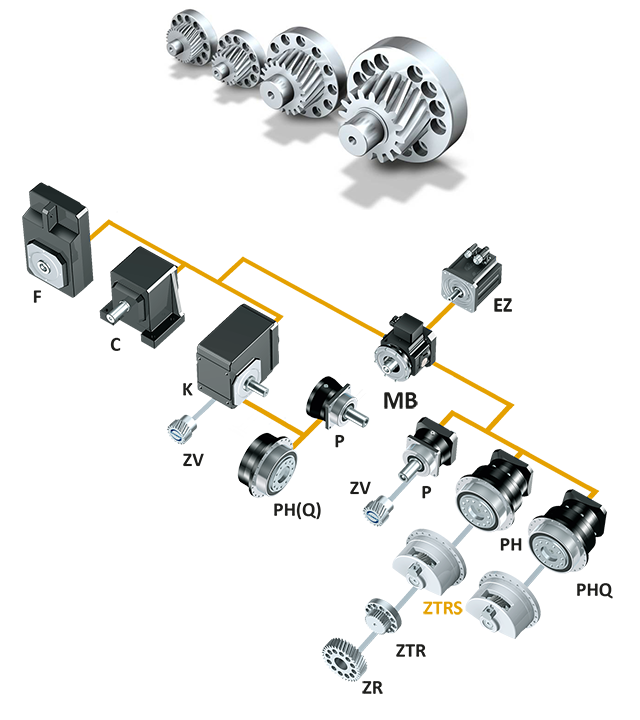

ZTRS Series: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Feed Force: 16 – 126 kN
  • Feed Velocity: .06 – 4.7 meters/second
  • Module: 2 – 10 mm
  • Number of teeth: 15 – 32
  • Backlash: 7 – 70 μm

Find your right fit!
KSS: For the toughest environments

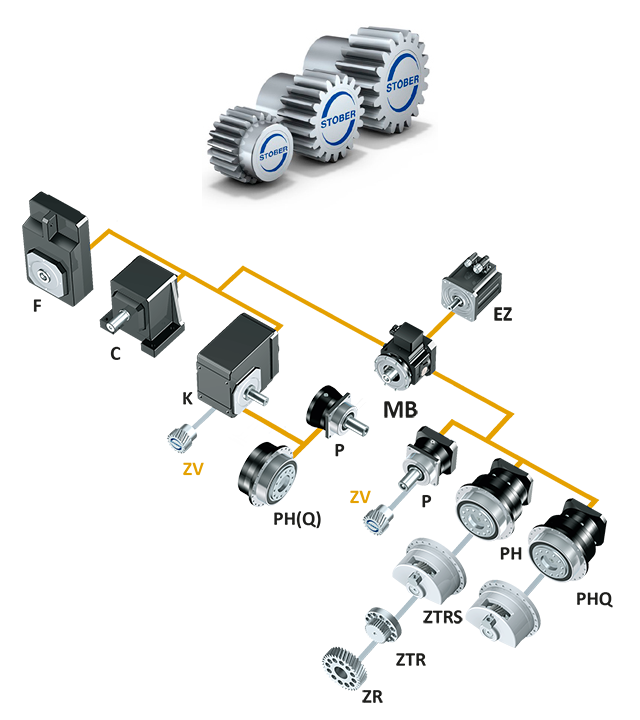

ZV Series: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Feed Force: 1.3 – 15 kN
  • Feed Velocity: .06 – 5.3 meters/second
  • Module: 2 – 4 mm
  • Number of teeth: 16 – 25
  • Backlash: 8 – 123 μm

Find your right fit!
FEATURES
ZR Series: FEATURES
K/KL: For right angle applications
ZTR Series: FEATURES
KSS: For the toughest environments
ZTRS Series: FEATURES
KSS: For the toughest environments
ZV Series: FEATURES
  • ZV with P Series
    • Pinion Position:
      • Shaft end
      • Shaft shoulder
    • Bearings: Options for axial or radial loads
      • Standard – ball bearing ideal for some axial and radial load capacity
      • Double row angular contact bearing – ideal for high axial loads
    • Backlash:
      • Standard
      • Reduced
  • ZV with PE Series
    • Pinion Position:
      • Shaft end
      • Shaft shoulder
  • ZV with KS Series
    • Pinion Position:
      • Shaft end
      • Shaft shoulder
  • ZV with K/KL Series
    • Pinion Position:
      • Shaft end
      • Shaft shoulder
    • Housing Style:
      • Pitch circle diameter tapped holes
      • Foot mounting
  • Available with a geared motor

  • Find your right fit!
INDUSTRIES & APPS
Industry Applications
  • Fuselage
  • Wing assembly
  • Drilling and Riveting
  • Machine Tool
  • Automated Guided Vehicles (AGV)
  • Carbon Fiber Placement
  • Testing and Inspection
  • Space Tracking Systems
Industry Applications
  • Assembly Turn Tables
  • Linear Press
  • Robotics Auxiliary Axis
  • Palletizing
  • Automated Assembly
  • Custom Assembly Machines
  • Radar
  • Pipe and Wire Bending
Industry Applications
  • Carbon Fiber Production
  • Electronics Assembly
  • Index Tables
  • Machining
  • Metal Cutting & Bending
  • Pick and Place
  • Robotic Auxiliary
  • Tire Manufacturing
  • Transfer Lines
Industry Applications
  • Carbon fiber tape laying
  • Horizontal and vertical mills
  • Flame, laser, waterjet, and plasma cutting
  • Grinding
  • Indexing
  • Bending and forming
Industry Applications
  • Automated Guided Vehicles (AGV)
  • Automated Vehicle Parking
  • Conveyors
  • Line Diverter
  • Linear Transfer
  • Palletizing
  • Pick and Place
  • Sorting/Diverting
  • Storage and Retrieval
Industry Applications
  • Delta
  • Pick and Place
  • Auxially axis
  • Telescoping arms
  • Positioning axis
DOWNLOADS

[TABS_R id=9371]

The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize
Catalog rack and pinion drivesCatalog rack and pinion drives 044431372022 06EN8.89 MB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize
Manual Gear Units Installation and TroubleshootingManual Gear Units Installation and Troubleshooting 304429002021 09EN16.36 MB
Lubricant fill volumeLubricant fill volume 164418712021 08EN1.23 MB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize
Brochure We Are STOBERBrochure We Are STOBER 314429352022 11EN7.99 MB
Flyer Environmentally FriendlyFlyer Environmentally Friendly 012022 10EN3.23 MB
Flyer Power Transmission OEM BenefitsFlyer Power Transmission OEM Benefits 012022 08EN10.39 MB
Flyer Torque Arm Stabilizer BracketFlyer Torque Arm Stabilizer Bracket 012022 08EN5.84 MB
Flyer Advantages of STOBER over Motorized PulleyFlyer Advantages of STOBER over Motorized Pulley 012022 08EN1.65 MB
Flyer Benefits of STOBER ProductsFlyer Benefits of STOBER Products 012022 06EN2.56 MB
Flyer Servo Geared Motors AdaptabilityFlyer Servo Geared Motors Adaptability 012022 06EN945.04 KB
Flyer Servo Geared Motors Packaged UnitFlyer Servo Geared Motors Packaged Unit 012022 06EN2.91 MB
Flyer Servo Geared Motors Runs CoolerFlyer Servo Geared Motors Runs Cooler 012022 06EN853.33 KB
Flyer Servo Geared Motors BulletinFlyer Servo Geared Motors Bulletin 012022 06EN2.04 MB
Flyer Servo Geared Motors Compact SizeFlyer Servo Geared Motors Compact Size 012022 06EN964.99 KB
Flyer Servo Geared Motors Dynamic SolutionsFlyer Servo Geared Motors Dynamic Solutions 012022 06EN989.93 KB
Flyer Servo Does Not Have to Mean PlanetaryFlyer Servo Does Not Have to Mean Planetary 012021 19EN6.49 MB
Flyer Hygienic Gearbox DesignFlyer Hygienic Gearbox Design 012021 11EN668.60 KB
Preventitive Maintenance Oil ChangePreventitive Maintenance Oil Change 012021 11EN562.52 KB
KSS Reducer RefurbishmentKSS Reducer Refurbishment 012021 11EN685.79 KB
MR Motor Adapter RefurbishmentMR Motor Adapter Refurbishment 012021 11EN488.65 KB
Aftermarket Service FlyerAftermarket Service Flyer Aftermarket Service Flyer2021 11EN9.50 MB
eBook Gearing EfficiencyeBook Gearing Efficiency 012021 10EN1011.84 KB
Brochure Machine Tool InsightBrochure Machine Tool Insight 012021 10EN922.06 KB
Flyer ME Motor Adapter BulletinFlyer ME Motor Adapter Bulletin 012021 10EN5.43 MB
Brochure Food InsightBrochure Food Insight 012021 10EN1.98 MB
Brochure Packaging InsightBrochure Packaging Insight 012021 10EN2.07 MB
Rockwell Totally Stainless Steel Servo SolutionsRockwell Totally Stainless Steel Servo Solutions 012021 10EN6.64 MB
Brochure Entertainment InsightBrochure Entertainment Insight 012021 10EN1.23 MB
Brochure Semiconductor InsightBrochure Semiconductor Insight 012021 10EN1.68 MB
Flyer Documented Cost SavingsFlyer Documented Cost Savings 012021 10EN766.46 KB
eBook Vibrations In DesignseBook Vibrations In Designs 012021 10EN4.15 MB
Brochure Beverage InsightBrochure Beverage Insight 012021 10EN1.37 MB
Flyer_Packaging InnovationFlyer_Packaging Innovation 012021 10EN657.37 KB
eBook Basics Of Gearbox SelectioneBook Basics Of Gearbox Selection 012021 10EN332.97 KB
Flyer Dangers of Water IngressFlyer Dangers of Water Ingress 012021 06EN825.35 KB
Flyer Torque Arm MountingFlyer Torque Arm Mounting 012021 06EN1.94 MB
Flyer Rockwell and STOBERFlyer Rockwell and STOBER 012021 06EN678.73 KB
Flyer Eliminate Paint FlakingFlyer Eliminate Paint Flaking 012021 06EN946.87 KB
Flyer Eliminate Shock LoadsFlyer Eliminate Shock Loads 012021 06EN1020.91 KB
Flyer Generation Three Planetary Gear UnitsFlyer Generation Three Planetary Gear Units 012021 06EN4.48 MB
Flyer Prime K Series RatiosFlyer Prime K Series Ratios 012021 06EN700.84 KB
Flyer STOBER by the NumbersFlyer STOBER by the Numbers 012020 10EN746.46 KB
Flyer Handling Shaft LoadsFlyer Handling Shaft Loads 012020 10EN1.35 MB
Flyer Avoid Integral Motor DowntimeFlyer Avoid Integral Motor Downtime 012020 09EN816.72 KB
Flyer Storeroom OptimizationFlyer Storeroom Optimization 012020 04EN747.11 KB
Flyer No Oil Changes RequiredFlyer No Oil Changes Required 012020 03EN5.87 MB
Flyer Eliminating Gearing MisalignmentFlyer Eliminating Gearing Misalignment 012020 02EN1.89 MB
Flyer Optimizing Bearings for GearboxesFlyer Optimizing Bearings for Gearboxes 012016 03EN215.71 KB
