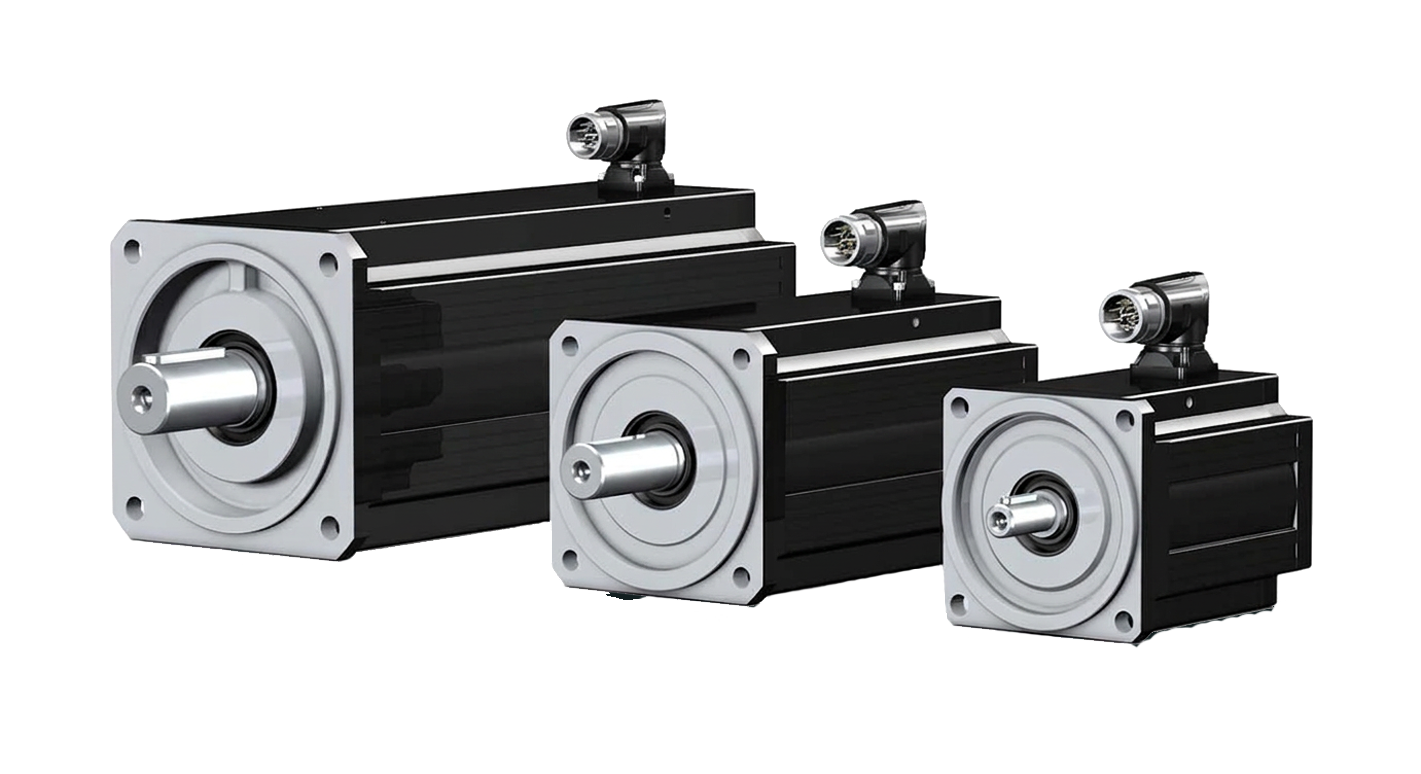

Lean Motors: Powerful Performance, Wherever You Need It

STOBER Lean Motors deliver precise speed and torque control, reduced energy consumption, and dependable performance in a compact design. They are an ideal solution for applications in the packaging, material handling, and machine tool industries.

More efficient than a traditional AC motor and less complex than a servo system, Lean Motors are available as standalone units or geared motors.

When a standard product does not fully meet your requirements, STOBER can develop a customized solution for your application. Our team is committed to understanding your challenges, solving complex problems, and delivering the ideal motor solution for your needs.

loader-icon
loader-icon

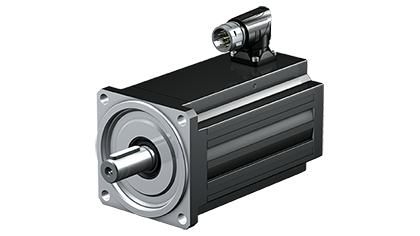

The LM Series Lean Motor bridges the gap between traditional AC motors and servo technology. It delivers improved speed and torque control in a compact, energy‑efficient package, so you only pay for the power you need. Built for durability, its sensorless design performs reliably in demanding environments, and doubling the ratio doubles the speed for added flexibility. Like every STOBER motor, it runs cooler, saves space, and provides dynamic performance that maximizes machine efficiency and uptime.

lean motors

LM Series: TECHNICAL DATA

Power Density:
Price Range:
 $ $ $ $ $
  • Stall torque: 2.43 – 29.8 Nm
  • Nominal torque: 2.25 – 25.7 Nm
  • Nominal Speed: Up to 3,000 RPM
right angle lean motor

LM Series: FEATURES

  • Encoderless Operation: Utilization of High Frequency Injection (HFI) provides high-performance with STOBER drives
  • Energy Efficiency Class: IE5 (highest class) in acc. with IEC/TS 60034-30-2
  • Shaft: Solid shaft with feather key
  • Brake: Optional robust spring-loaded holding brake on the motor’s B side
  • Power Interface:
    • Rotating plug connectors with quick lock
    • Encoderless motor, the position is determined via the power connection
    • Correct position and speed determinations in combination with STOBER SB6, SC6, and SI6 drive controllers
    • Speed deviation is less than 1%, positioning accuracy is ± 1°
  • Cooling: Convection cooling
  • Winding Protection: PTC thermistors guarantee thermal winding protection
  • Paint: RAL 9005 Jet black
  • Marks and Test Symbols: CE and cURus
  • Recommended Drive Controllers: STOBER drive controllers of the SB6, SC6, or SI6 series
PK_EZ features

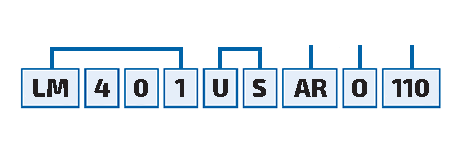

LM Motors Series: PART NUMBER EXAMPLE:

LM part number

LM 4 0 1
U S
AR
O
110
