ServoStop Servomotor Brakes

servo geared motors

Servo Gear Units with Brake

STOBER’s servo gear units can be paired with our ServoStop, an integrated safety brake. It’s ideal for vertical applications and provides redundant braking. It prevents slipping or falls, even when the motor is removed.

BENEFITS
The World’s Toughest Gearboxes
ServoStop is a revolutionary safety brake that provides dynamic braking during power failures or emergency stops in hazardous situations. It is integrated into the gearbox and prevents accidental sliding or falling of vertical axis. The servo motor can be dismounted even with the brake engaged. Let us optimize your machine design today!
The C series can be integrated with a ServoStop safety brake. This series utilizes helical gearing for up to 97% efficiency.

Choose the housing style that fits your application – round or square flanges, tapped holes, or foot mounting.

The F series can be integrated with a ServoStop safety brake. This series offers compact size and flexibility, as well as optimal efficiency due to the helical bevel gearing. Choose from a variety of housing styles and output options.
The K series can be integrated with a ServoStop safety brake. This series is unparalleled when it comes to right angle options. Its unique design allows you to use a variety of outputs, including shaft, hollow bore, shrink rings, and bushings.

Housing options include flange, feet, and torque arm

The K unit features helical bevel gearing, providing smooth motion and optimal efficiency.
The P series can be integrated with a ServoStop safety brake. This series features planetary gearing, providing unsurpassed smoothness and precision.

It is incredibly efficient, has low backlash, and runs quiet.

Plus, you can choose from several bearing options to handle radial or axial loads, optimizing your machine design.
The PH series can be integrated with a ServoStop safety brake. This series offers superior stiffness and accuracy.

It offers a reinforced bearing option for applications with higher axial loads.

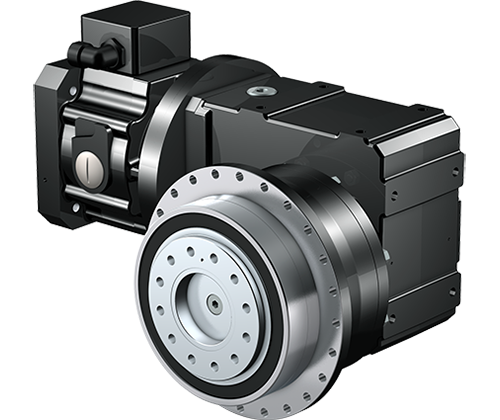

The PHK series can be integrated with a ServoStop safety brake. This series combines our planetary PH series with a K series input.

This gear unit features quiet operation, higher ratios, and higher input speeds compared to a KX series unit.

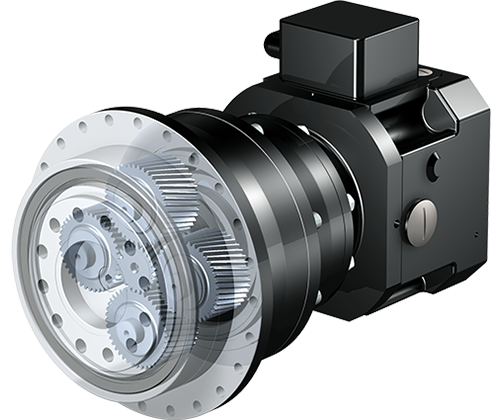

The PHQ can be integrated with a ServoStop safety brake. The PHQ series features four planetary gears, making it the most powerful gearbox on the market.

It provides smooth operation while producing huge amounts of torque.

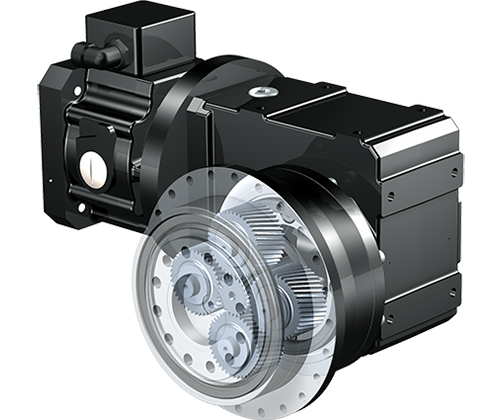

The PHQK can be integrated with a ServoStop safety brake. This series series combines our planetary PHQ series with a K series input.

This gear unit features the highest acceleration torque and torque density.

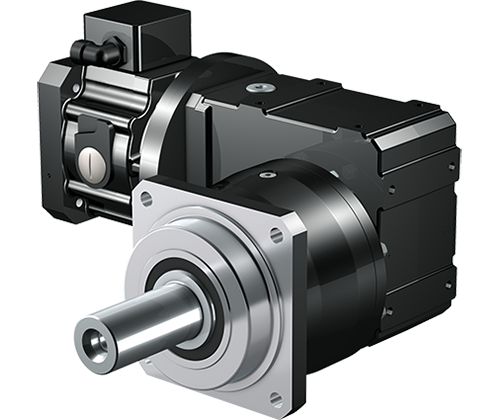

The PK series can be integrated with a ServoStop safety brake. This series combines our planetary P series with a K series input.

This gear unit offers quieter operation, higher input speeds, and higher ratios compared to a KX unit.
TECHNICAL DATA
C Series with Brake: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Torque: 47 – 4,800 Nm
  • Nominal Brake Torque: 8 – 160 Nm
  • Ratio: 2 – 70
  • Backlash: 10 – 20 arcmin
  • Efficiency: 97%


Find your right fit!
F Series with Brake: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Torque: 100 – 1,100 Nm
  • Nominal Brake Torque: 8 – 160 Nm
  • Ratio: 4.3 – 140
  • Backlash: 5 – 11 arcmin
  • Efficiency: 97%


Find your right fit!
K Series with Brake: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Torque: 93 – 7,700 Nm
  • Nominal Brake Torque: 8 – 160 Nm
  • Ratio: 4 – 99
  • Backlash: 1.5 – 12 arcmin
  • Efficiency: 96-97%


Find your right fit!
P Series with Brake: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Torque: 109 – 3,000 Nm
  • Nominal Brake Torque: 8 – 300 Nm
  • Ratio: 3 – 80
  • Backlash: 3 – 4 arcmin
  • Efficiency: 95 – 97%


Find your right fit!
PH Series with Brake: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Torque: 144 – 7,500 Nm
  • Nominal Brake Torque: 8 – 300 Nm
  • Ratio: 4 – 121
  • Backlash: 3 arcmin
  • Efficiency: 90 – 96%


Find your right fit!
PHK Series with Brake: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Torque: 320 – 7,500 Nm
  • Nominal Brake Torque: 8 – 160 Nm
  • Ratio: 16 – 466
  • Backlash: 3.5 – 4.5 arcmin
  • Efficiency: 92 – 93%


Find your right fit!
PHQ Series with Brake: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Torque: 767 – 22,000 Nm
  • Nominal Brake Torque: 8 – 300 Nm
  • Ratio: 18 – 420
  • Backlash: 3 arcmin
  • Efficiency: 90 -93%


Find your right fit!
PHQK Series with Brake: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Torque: 425 – 43,000 Nm
  • Nominal Brake Torque: 8 – 160 Nm
  • Ratio: 22 – 591
  • Backlash: 3.5 – 4 arcmin
  • Efficiency: 92 – 93%


Find your right fit!
PK Series with Brake: TECHNICAL DATA
Power Density:
Price Range:
$$$$$
  • Acceleration Torque: 200 – 2,700 Nm
  • Nominal Brake Torque: 8 – 100 Nm
  • Ratio: 12 – 390
  • Backlash: 3.5 – 5 arcmin
  • Efficiency: 94%


Find your right fit!
FEATURES

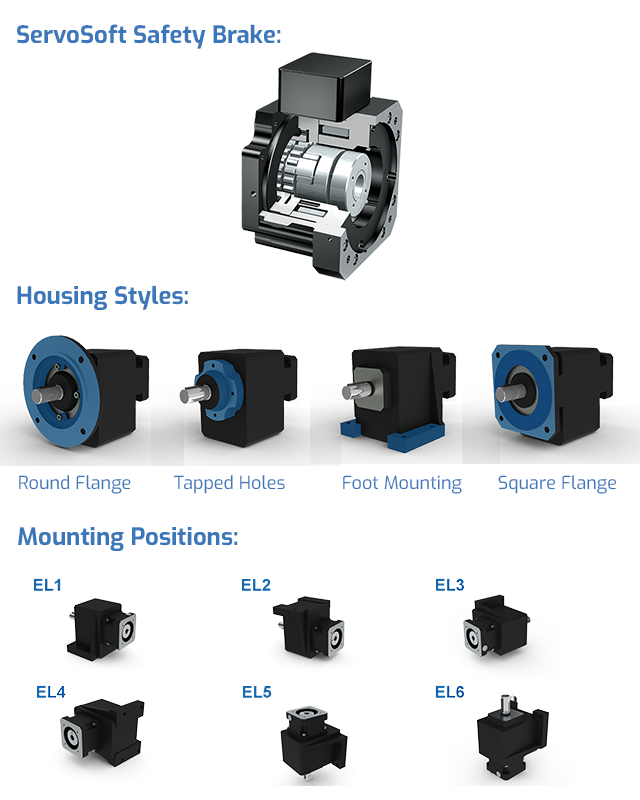

C Series: FEATURES
  • Housing Styles:
    • Round output flange
    • Pitch circle diameter tapped holes
    • Foot mounting
    • Square output flange
  • Package Options: options for different environments. A package includes coating, lubrication, and output material
    • Standard Duty – RAL-9005 black paint, Synthetic Exxon Mobil SHC 629, carbon steel output
    • Corrosion Resistant Duty – 316 stainless steel epoxy paint, Exxon Mobil SHC 630 or 600XP220 Mineral, and stainless steel output
    • Food Duty – 316 stainless steel epoxy food duty paint with anti-microbial clear coat, Exxon Mobil SHC CIBUS 220, and stainless steel output
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • Input Voltage:
    • 24V
    • 104V
  • Rectifier – convert AC voltage into DC Voltage
    • Only required for 104 Volts
  • Manual Release
    • Available with manual hand release
  • Connection Type for Power Source
    • Terminal box – for hard wiring
    • Connector – for cable connection
  • Air Gap Monitoring
    • With proximity switch IP54
    • With proximity switch IP65

Find your right fit!

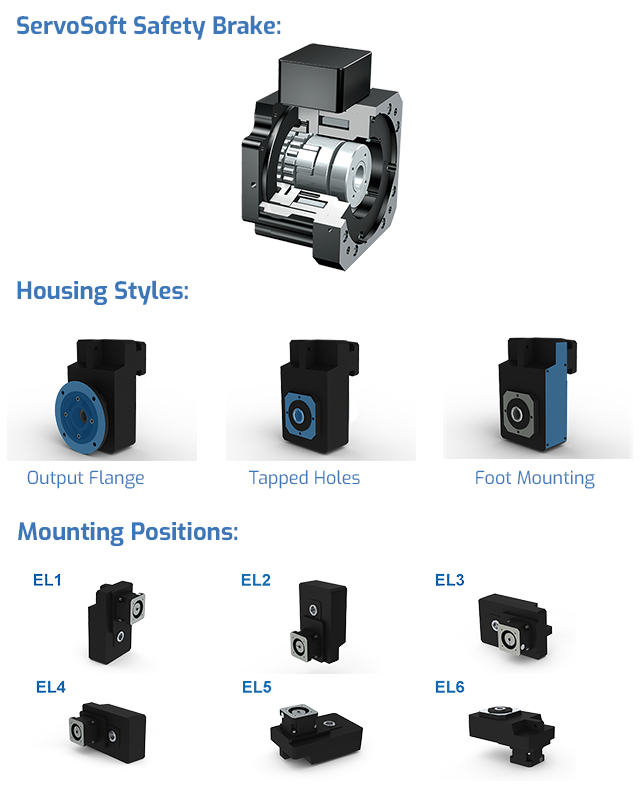

F Series: FEATURES
  • Outputs:
    • Hollow bore
    • Shaft
    • Shrink ring
    • Single or double wobble free bushing
  • Housing Styles:
    • Output flange
    • Pitch circle diameter tapped holes
    • Foot mounting
  • Package Options: options for different environments. A package includes coating, lubrication, and output material
    • Standard Duty – RAL-9005 black paint, Synthetic Exxon Mobil SHC 629, carbon steel output
    • Corrosion Resistant Duty – 316 stainless steel epoxy paint, Exxon Mobil SHC 630 or 600XP220 Mineral, and stainless steel output
    • Food Duty – 316 stainless steel epoxy food duty paint with anti-microbial clear coat, Exxon Mobil SHC CIBUS 220, and stainless steel output
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • Input Voltage:
    • 24V
    • 104V
  • Rectifier – convert AC voltage into DC Voltage
    • Only required for 104 Volts
  • Manual Release
    • Available with manual hand release
  • Connection Type for Power Source
    • Terminal box – for hard wiring
    • Connector – for cable connection
  • Air Gap Monitoring
    • With proximity switch IP54
    • With proximity switch IP65

Find your right fit!

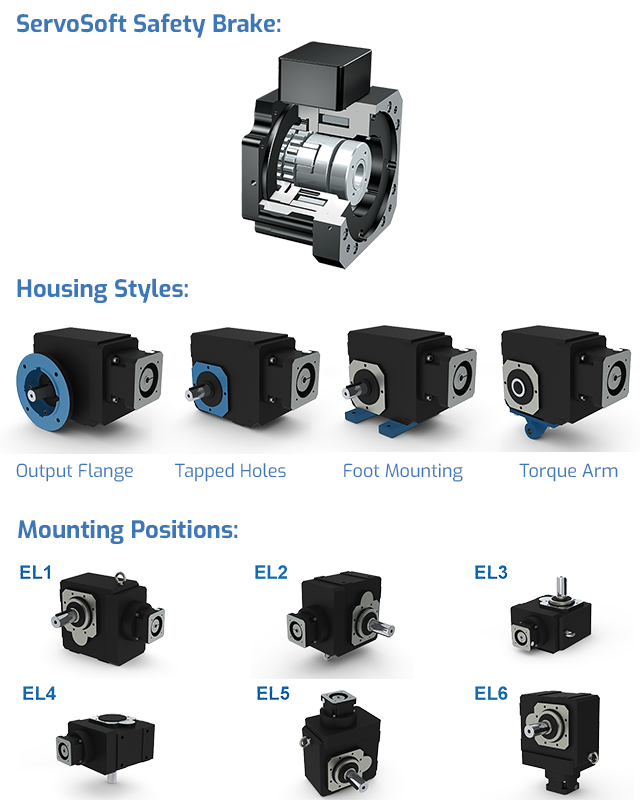

K/KL Series: FEATURES
  • Outputs:
    • Hollow bore
    • Shaft output (K)
    • Shaft with or without key (KL)
    • Single or double wobble free bushing
  • Housing Styles:
    • Output flange (Round for K, Square for KL)
    • Pitch circle diameter tapped holes
    • Foot mounting
    • Torque arm bracket (K only)
  • Package Options: options for different environments. A package includes coating, lubrication, and output material
    • Standard Duty – RAL-9005 black paint, Synthetic Exxon Mobil SHC 629, carbon steel output
    • Corrosion Resistant Duty – 316 stainless steel epoxy paint, Exxon Mobil SHC 630 or 600XP220 Mineral, and stainless steel output
    • Food Duty – 316 stainless steel epoxy food duty paint with anti-microbial clear coat, Exxon Mobil SHC CIBUS 220, and stainless steel output
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • Input Voltage:
    • 24V
    • 104V
  • Rectifier – convert AC voltage into DC Voltage
      Only required for 104 Volts
  • Manual Release
    • Available with manual hand release
  • Connection Type for Power Source
    • Terminal box – for hard wiring
    • Connector – for cable connection
  • Air Gap Monitoring
    • With proximity switch IP54
    • With proximity switch IP65

Find your right fit!

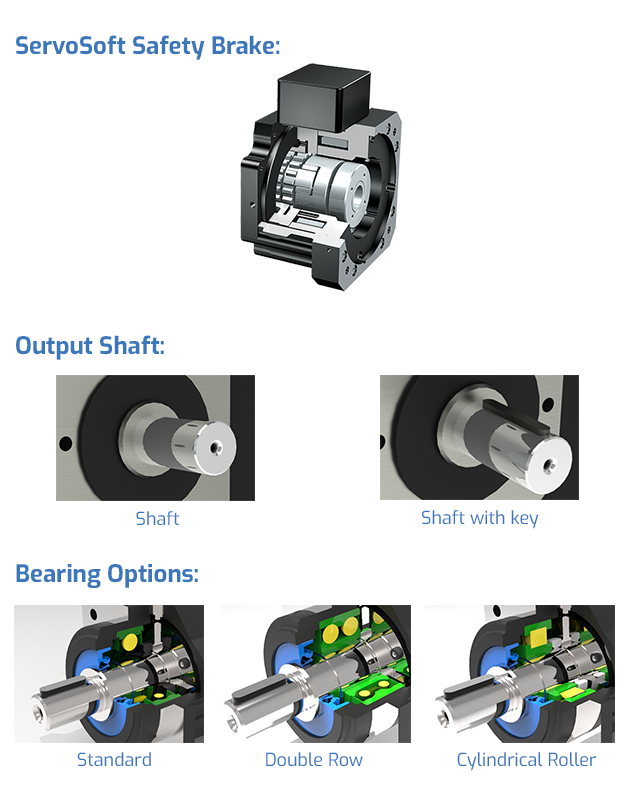

P Series: FEATURES
  • Output Shaft:
    • Plain shaft
    • Feather key
  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Double row angular contact bearing – ideal for high axial loads
    • Cylindrical roller bearing – ideal for radial loads
  • Backlash:
    • Standard
    • Reduced
  • Package Options: options for different environments. A package includes coating, lubrication, and output material
    • Standard Duty – RAL-9005 black paint, Synthetic Exxon Mobil SHC 629, carbon steel output
    • Food Duty – 316 stainless steel epoxy paint with anti-microbial clear coat, Exxon Mobil SHC CIBUS 220, and stainless steel output
  • Input Voltage:
    • 24V
    • 104V
  • Rectifier – convert AC voltage into DC Voltage
    • Only required for 104 Volts
  • Manual Release
    • Available with manual hand release
  • Connection Type for Power Source
    • Terminal box – for hard wiring
    • Connector – for cable connection
  • Air Gap Monitoring
    • With proximity switch IP54
    • With proximity switch IP65

Find your right fit!

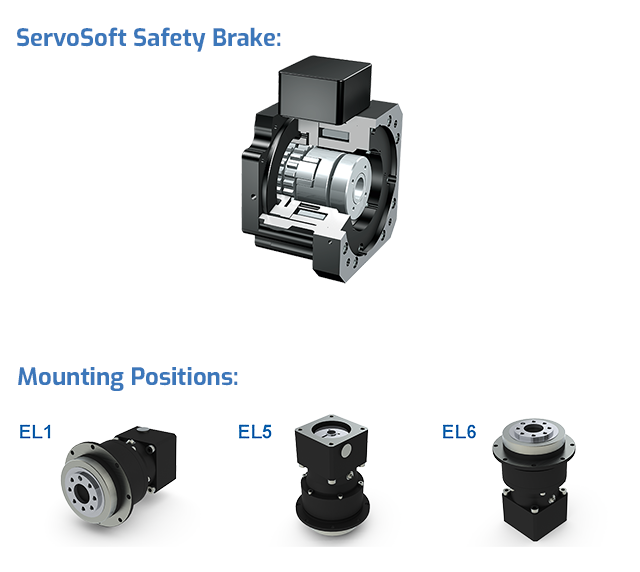

PH Series: FEATURES
  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Reinforced bearing – ideal for high axial loads
  • Backlash:
    • Standard
    • Reduced
  • Coating Options: options for different environments.
    • Standard Duty – RAL-9005 black paint
    • Washdown Duty – 316 stainless steel epoxy paint
  • Input Voltage:
    • 24V
    • 104V
  • Rectifier – convert AC voltage into DC Voltage
    • Only required for 104 Volts
  • Manual Release
    • Available with manual hand release
  • Connection Type for Power Source
    • Terminal box – for hard wiring
    • Connector – for cable connection
  • Air Gap Monitoring
    • With proximity switch IP54
    • With proximity switch IP65

Find your right fit!

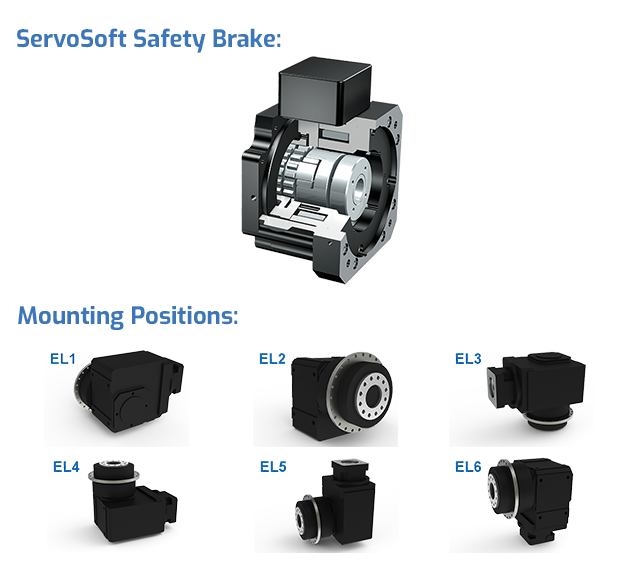

PHK Series: FEATURES
  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Reinforced bearing – ideal for high axial loads
  • Coating Options: options for different environments.
    • Standard Duty – RAL-9005 black paint
    • Washdown Duty – 316 stainless steel epoxy paint
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • Input Voltage:
    • 24V
    • 104V
  • Rectifier – convert AC voltage into DC Voltage
    • Only required for 104 Volts
  • Manual Release
    • Available with manual hand release
  • Connection Type for Power Source
    • Terminal box – for hard wiring
    • Connector – for cable connection
  • Air Gap Monitoring
    • With proximity switch IP54
    • With proximity switch IP65

Find your right fit!
PHQ Series: FEATURES
  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Reinforced bearing – ideal for high axial loads
  • Backlash:
    • Standard
    • Reduced
  • Coating Options: options for different environments.
    • Standard Duty – RAL-9005 black paint
    • Washdown Duty – 316 stainless steel epoxy paint
  • Input Voltage:
    • 24V
    • 104V
  • Rectifier – convert AC voltage into DC Voltage
    • Only required for 104 Volts
  • Manual Release
    • Available with manual hand release
  • Connection Type for Power Source
    • Terminal box – for hard wiring
    • Connector – for cable connection
  • Air Gap Monitoring
    • With proximity switch IP54
    • With proximity switch IP65

Find your right fit!
PHQK Series: FEATURES
  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Reinforced bearing – ideal for high axial loads
  • Coating Options: options for different environments.
    • Standard Duty – RAL-9005 black paint
    • Washdown Duty – 316 stainless steel epoxy paint
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • Input Voltage:
    • 24V
    • 104V
  • Rectifier – convert AC voltage into DC Voltage
    • Only required for 104 Volts
  • Manual Release
    • Available with manual hand release
  • Connection Type for Power Source
    • Terminal box – for hard wiring
    • Connector – for cable connection
  • Air Gap Monitoring
    • With proximity switch IP54
    • With proximity switch IP65

Find your right fit!

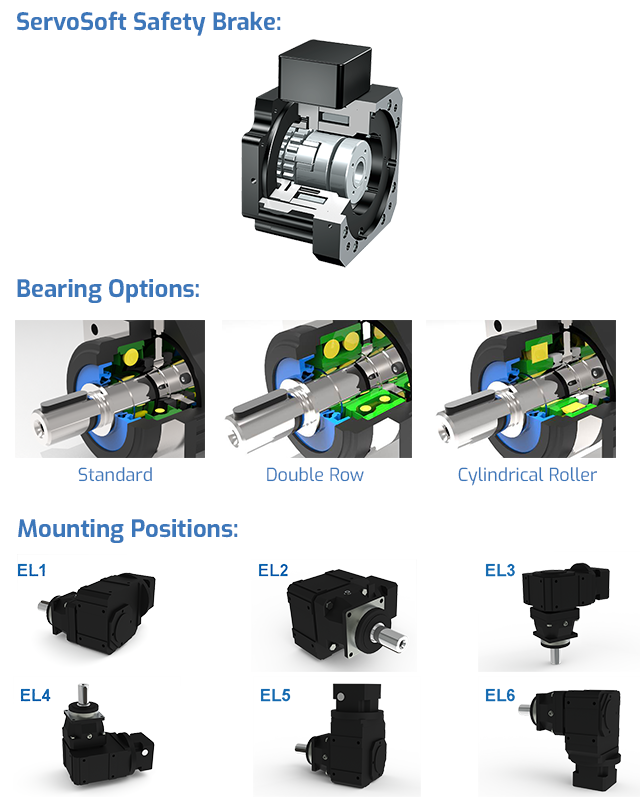

PK Series: FEATURES
  • Output Shaft:
    • Plain shaft
    • Feather key
  • Bearings: Options for axial or radial loads
    • Standard – ball bearing ideal for some axial and radial load capacity
    • Double row angular contact bearing – ideal for high axial loads
    • Cylindrical roller bearing – ideal for radial loads
  • Package Options: options for different environments. A package includes coating, lubrication, and output material
    • Standard Duty – RAL-9005 black paint, Synthetic Exxon Mobil SHC 629, carbon steel output
    • Food Duty – 316 stainless steel epoxy paint with anti-microbial clear coat, Exxon Mobil SHC CIBUS 220, and stainless steel output
  • Mounting Positions:
    • EL1, 2, 3, 4, 5, or 6
  • Input Voltage:
    • 24V
    • 104V
  • Rectifier – convert AC voltage into DC Voltage
    • Only required for 104 Volts
  • Manual Release
    • Available with manual hand release
  • Connection Type for Power Source
    • Terminal box – for hard wiring
    • Connector – for cable connection
  • Air Gap Monitoring
    • With proximity switch IP54
    • With proximity switch IP65

Find your right fit!
INDUSTRIES & APPS
Industry Applications
  • Fuselage
  • Wing assembly
  • Drilling and Riveting
  • Machine Tool
  • Automated Guided Vehicles (AGV)
  • Carbon Fiber Placement
  • Testing and Inspection
  • Space Tracking Systems
Industry Applications
  • Assembly Turn Tables
  • Linear Press
  • Robotics Auxiliary Axis
  • Palletizing
  • Automated Assembly
  • Custom Assembly Machines
  • Radar
  • Pipe and Wire Bending
Industry Applications
  • Carbon Fiber Production
  • Electronics Assembly
  • Index Tables
  • Machining
  • Metal Cutting & Bending
  • Pick and Place
  • Robotic Auxiliary
  • Tire Manufacturing
  • Transfer Lines
Industry Applications
  • Animatronics
  • Backdrops
  • Staging
  • Theme parks
  • Simulators for aerospace, automotive, locomotive, theme park rides and more
Industry Applications
  • Carbon fiber tape laying
  • Horizontal and vertical mills
  • Flame, laser, waterjet, and plasma cutting
  • Grinding
  • Indexing
  • Bending and forming
Industry Applications
  • Automated Guided Vehicles (AGV)
  • Automated Vehicle Parking
  • Conveyors
  • Line Diverter
  • Linear Transfer
  • Palletizing
  • Pick and Place
  • Sorting/Diverting
  • Storage and Retrieval
Industry Applications
  • Delta
  • Pick and Place
  • Auxially axis
  • Telescoping arms
  • Positioning axis
DOWNLOADS

[TABS_R id=9371]

The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize
Catalog Synchronous servo geared motors with redundant brakeCatalog Synchronous servo geared motors with redundant brake 004433112022 05EN15.73 MB
Catalog ServoStop servo gear units with brakeCatalog ServoStop servo gear units with brake 014432342022 03EN12.67 MB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize
Manual_ServoStop_InstallationManual_ServoStop_Installation 304428002021 09EN221.31 KB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize
Brochure We Are STOBERBrochure We Are STOBER 314429352022 11EN7.99 MB
Flyer Environmentally FriendlyFlyer Environmentally Friendly 012022 10EN3.23 MB
Flyer Power Transmission OEM BenefitsFlyer Power Transmission OEM Benefits 012022 08EN10.39 MB
Flyer Torque Arm Stabilizer BracketFlyer Torque Arm Stabilizer Bracket 012022 08EN5.84 MB
Flyer Advantages of STOBER over Motorized PulleyFlyer Advantages of STOBER over Motorized Pulley 012022 08EN1.65 MB
Flyer Benefits of STOBER ProductsFlyer Benefits of STOBER Products 012022 06EN2.56 MB
Flyer Servo Geared Motors AdaptabilityFlyer Servo Geared Motors Adaptability 012022 06EN945.04 KB
Flyer Servo Geared Motors Packaged UnitFlyer Servo Geared Motors Packaged Unit 012022 06EN2.91 MB
Flyer Servo Geared Motors Runs CoolerFlyer Servo Geared Motors Runs Cooler 012022 06EN853.33 KB
Flyer Servo Geared Motors BulletinFlyer Servo Geared Motors Bulletin 012022 06EN2.04 MB
Flyer Servo Geared Motors Compact SizeFlyer Servo Geared Motors Compact Size 012022 06EN964.99 KB
Flyer Servo Geared Motors Dynamic SolutionsFlyer Servo Geared Motors Dynamic Solutions 012022 06EN989.93 KB
Flyer Servo Does Not Have to Mean PlanetaryFlyer Servo Does Not Have to Mean Planetary 012021 19EN6.49 MB
Flyer Hygienic Gearbox DesignFlyer Hygienic Gearbox Design 012021 11EN668.60 KB
Preventitive Maintenance Oil ChangePreventitive Maintenance Oil Change 012021 11EN562.52 KB
KSS Reducer RefurbishmentKSS Reducer Refurbishment 012021 11EN685.79 KB
MR Motor Adapter RefurbishmentMR Motor Adapter Refurbishment 012021 11EN488.65 KB
Aftermarket Service FlyerAftermarket Service Flyer Aftermarket Service Flyer2021 11EN9.50 MB
eBook Gearing EfficiencyeBook Gearing Efficiency 012021 10EN1011.84 KB
Brochure Machine Tool InsightBrochure Machine Tool Insight 012021 10EN922.06 KB
Flyer ME Motor Adapter BulletinFlyer ME Motor Adapter Bulletin 012021 10EN5.43 MB
Brochure Food InsightBrochure Food Insight 012021 10EN1.98 MB
Brochure Packaging InsightBrochure Packaging Insight 012021 10EN2.07 MB
Rockwell Totally Stainless Steel Servo SolutionsRockwell Totally Stainless Steel Servo Solutions 012021 10EN6.64 MB
Brochure Entertainment InsightBrochure Entertainment Insight 012021 10EN1.23 MB
Brochure Semiconductor InsightBrochure Semiconductor Insight 012021 10EN1.68 MB
Flyer Documented Cost SavingsFlyer Documented Cost Savings 012021 10EN766.46 KB
eBook Vibrations In DesignseBook Vibrations In Designs 012021 10EN4.15 MB
Brochure Beverage InsightBrochure Beverage Insight 012021 10EN1.37 MB
Flyer_Packaging InnovationFlyer_Packaging Innovation 012021 10EN657.37 KB
eBook Basics Of Gearbox SelectioneBook Basics Of Gearbox Selection 012021 10EN332.97 KB
Flyer Dangers of Water IngressFlyer Dangers of Water Ingress 012021 06EN825.35 KB
Flyer Torque Arm MountingFlyer Torque Arm Mounting 012021 06EN1.94 MB
Flyer Rockwell and STOBERFlyer Rockwell and STOBER 012021 06EN678.73 KB
Flyer Eliminate Paint FlakingFlyer Eliminate Paint Flaking 012021 06EN946.87 KB
Flyer Eliminate Shock LoadsFlyer Eliminate Shock Loads 012021 06EN1020.91 KB
Flyer Generation Three Planetary Gear UnitsFlyer Generation Three Planetary Gear Units 012021 06EN4.48 MB
Flyer Prime K Series RatiosFlyer Prime K Series Ratios 012021 06EN700.84 KB
Flyer STOBER by the NumbersFlyer STOBER by the Numbers 012020 10EN746.46 KB
Flyer Handling Shaft LoadsFlyer Handling Shaft Loads 012020 10EN1.35 MB
Flyer Avoid Integral Motor DowntimeFlyer Avoid Integral Motor Downtime 012020 09EN816.72 KB
Flyer Storeroom OptimizationFlyer Storeroom Optimization 012020 04EN747.11 KB
Flyer No Oil Changes RequiredFlyer No Oil Changes Required 012020 03EN5.87 MB
Flyer Eliminating Gearing MisalignmentFlyer Eliminating Gearing Misalignment 012020 02EN1.89 MB
Flyer Optimizing Bearings for GearboxesFlyer Optimizing Bearings for Gearboxes 012016 03EN215.71 KB
SERVICES

Contact us!
Phone: +1 (888) 786-2371
Email: sales@stober.com

Tools & Software
stober product id

With a few simple clicks, you can download drawings, technical data sheets, or dimensional drawings of any STOBER product. Plus, you can easily request a quote.

stober cad

Are you looking for CAD data? With the STOBER CAD tool, you can download the drawings you want with just a few clicks.

STOBER CAD
servo brake

With SERVOsoft® we provide you with a tool that you can use to precisely scale your drive systems in just a few steps. Electrically and mechanically. And it’s quick and easy too.

SERVOSOFT®
Service & Repair
Sales Rep Network

Our sales reps have the expertise and industry know-how to provide you with the best solutions. Call to get more information today!

Find your Rep
REPLACEMENT & REPAIR

Do you need competent help with spare parts, replacement drives, repairs and retrofitting? Please contact us! We also offer you a 24-hour emergency call for urgent cases.

Aftermarket Service

Emergency SupportSTOBER offers emergency application and installation support 24 hours a day, 7 days a week, 365 days a year anywhere in the US. We are here for you!

+1 (606) 563-6035

For highly dynamic applications

“We’ve used STOBER for years to rebuild equipment such as lathes and milling machines for machine tool customers. Every job is project-based, and requirements are always different, but STOBER is the perfect match for our gearbox requirements. Its SMS series allows us to choose from a large range of ratios, mounting configurations, housing options, and more. STOBER’s responsiveness is also a key plus. STOBER employees build and ship units in one day and give us quick answers on requests. I can’t think of a better way to meet customer needs.”

Steve Nelson – Design Engineer, Machine Tool Research

PowerTipsWhite 1

STOBER’s Power Tips video series shares best practices and helpful answers to frequently asked questions.

sizing for total lost motion
designing a machine
we are stober

SUPPORT YOU CAN COUNT ON

STOBER’s regional sales team will be with you every step of the way. From sizing to ordering to aftermarket, our engineers will help you optimize your solution.

You may also be interested in

inline servo420
Inline Servo Gear Units

STOBER offers the most precise planetary gear unit on the market. You can also choose mounting flexibility with our helical bevel options.

right angle servo420
Right Angle Servo Gear Units

Mounting flexibility and a variety of outputs make for the most powerful gearbox on the market. STOBER’s right angle servo gear units give you the ultimate choices.

inline geared motors420
Inline Geared Motors

STOBER’s inline geared motors provide the ultimate stiffness and precision for your application.

right angle geared motors420
Right Angle Geared Motors

Easily find a geared motor to fit your requirements. From helical bevel to planetary, STOBER has billions of options.
